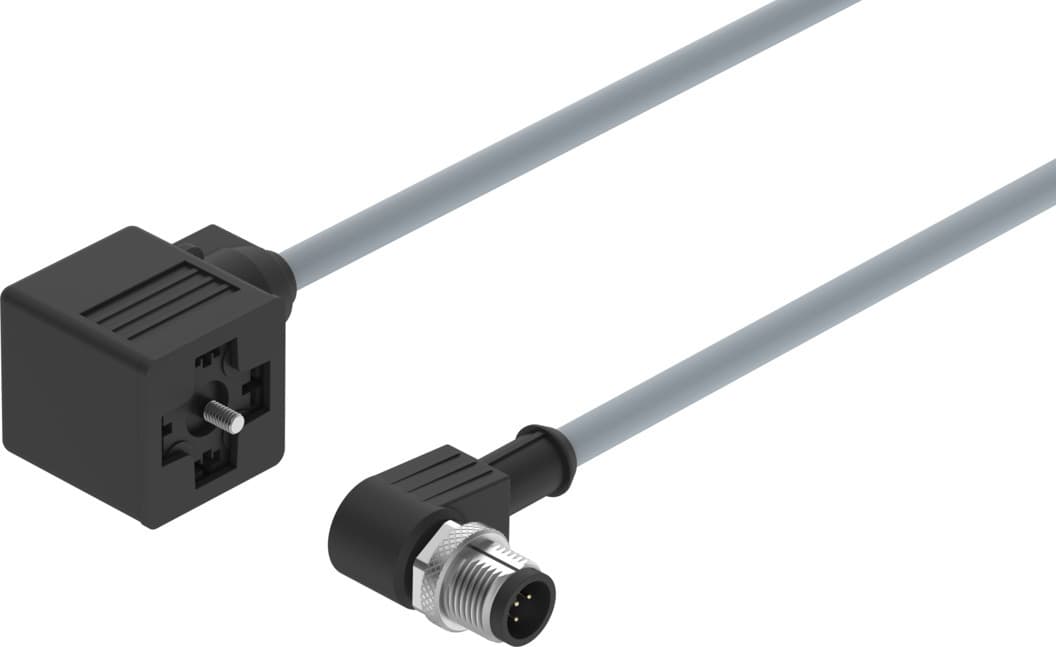

nebv-a1w3f-p-k-0.3-n-m12w3
Product ID:8471
Updated: 2026/4/3
Key Features
- 1Ensure reliable electrical connections with 3 x 0.75 mm² wires. 2、Monitor status easily via the integrated yellow LED indicator. 3、Withstand harsh, wet conditions thanks to IP67 protection. 4、Meet industry standards with EU RoHS and VDMA24364 compliance. 5、Simplify installation using the 0.3-meter pre-configured cable length.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Certification | c CSA us (OL) | Switching status indication | LED yellow |
| Additional functions | Protective circuit | Cable designation | Without label holder |
| Product weight | 60g | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | Connection diagram form A based on EN 175301-803 |
| Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 4 |
| Electrical connection 1, type of mounting | On air solenoid valve with M3 central screw | Electrical connection for input 1, connection pattern | 00995710 |
| Electrical connection 2, function | Control side | Electrical connection 2, design | Round |
| Electrical connection 2, connection type | Plug | Electrical connection 2, cable outlet | Angled |
| Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 2, number of pins/wires | 5 |
| Electrical connection 2, occupied pins/wires | 3 | Electrical connection 2, type of mounting | Screw-type lock with hexagon, AF 13 |
| Electrical connection 2, connection pattern | 00995711 | DC operating voltage range | 18V 30V |
| Nominal operating voltage DC | 24V | Operating voltage range AC | 18V 30V |
| Nominal operating voltage AC | 24V | Current rating at 40° C | 4A |
| Surge resistance | 0.8kV | Protective earth connection | Available |
| Cable length | 0.3m | Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request | Cable diameter | 5.9mm |
| Cable diameter tolerance | ± 0.3 mm | Cable design | 3 x 0.75 mm2 |
| Degree of protection | IP67 | Note on degree of protection | In mounted state |
| Ambient temperature | -25°C 80°C | Ambient temperature with flexible cable installation | -25°C 80°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
| Housing material | TPE-U(PUR) | Housing colour | Black |
| Material of union nut | Die-cast zinc Nickel-plated | Insulating sheath material | PP |
| Manufacturer ID | 3679771 |
Specifications may be subject to change without notice
