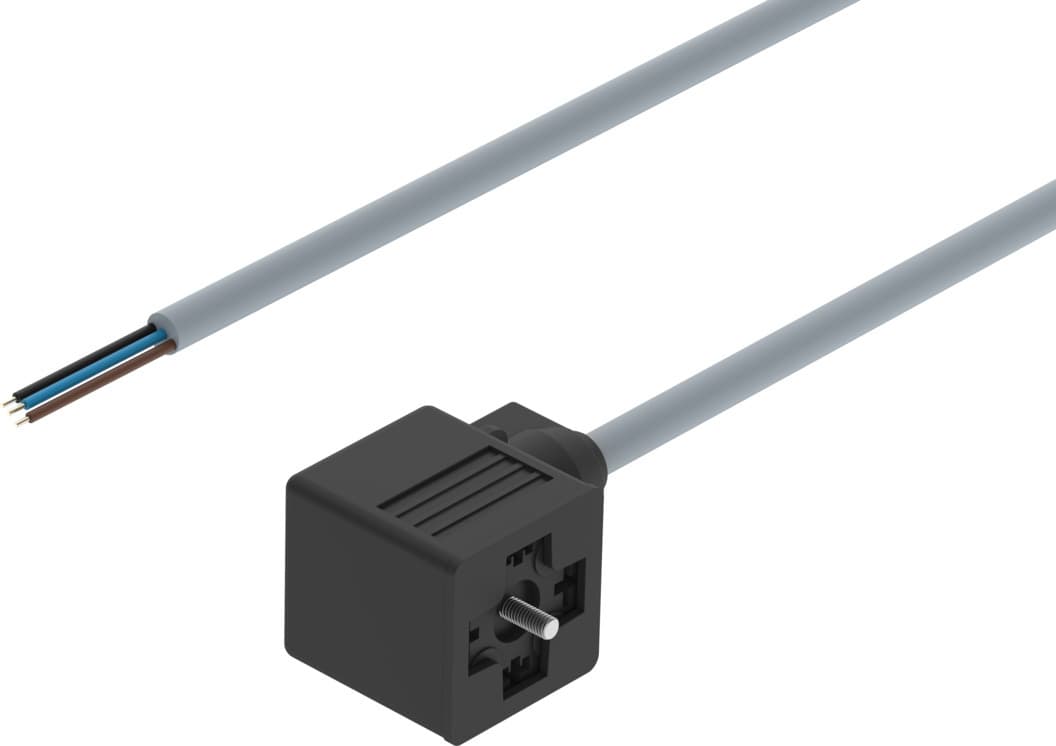

nebv-a1w3-k-0.6-n-le3
Product ID:8286
Updated: 2026/7/4
Key Features
- 1Ensure reliable field-to-controller connections with CSA us (OL) approval.
- 2Fit tight spaces using the angular plug socket design for easy installation.
- 3Withstand harsh conditions from -25°C to 80°C with a 5.9mm diameter cable.
- 4Achieve IP67 protection against dust and water ingress in industrial environments.
- 5Meet EU, UK RoHS, and VDMA24364 standards for full regulatory compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Certification | c CSA us (OL) | Cable designation | Without label holder |
| Product weight | 80g | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | Connection diagram form A based on EN 175301-803 |
| Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 4 |
| Electrical connection 1, type of mounting | On air solenoid valve with M3 central screw | Electrical connection for input 1, connection pattern | 00995710 |
| Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 3 |
| Electrical connection 2, occupied pins/wires | 3 | DC operating voltage range | 0V 230V |
| Nominal operating voltage DC | 230V | Operating voltage range AC | 0V 230V |
| Nominal operating voltage AC | 230V | Current rating at 40° C | 10A |
| Surge resistance | 4kV | Protective earth connection | Available |
| Cable length | 0.6m | Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request | Cable diameter | 5.9mm |
| Cable diameter tolerance | ± 0.3 mm | Cable design | 3 x 0.75 mm2 |
| Degree of protection | IP67 | Note on degree of protection | In mounted state |
| Ambient temperature | -25°C 80°C | Ambient temperature with flexible cable installation | -25°C 80°C |
| CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
| LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
| Housing material | TPE-U(PUR) | Housing colour | Black |
| Insulating sheath material | PP | Manufacturer ID | 3579466 |
Specifications may be subject to change without notice
