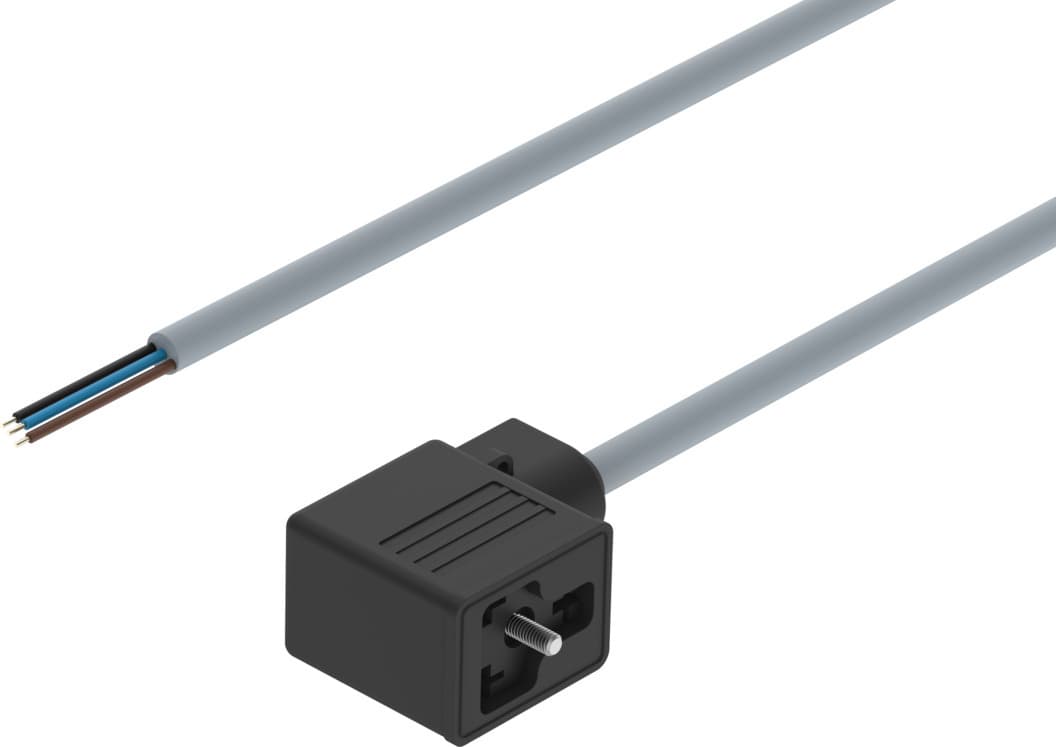

nebv-b2w3-k-0.6-n-le3
Product ID:8287
Updated: 2026/4/3
Key Features
- 1Obtain CSA (UL) safety certification for reliable industrial electrical connections. 2、Utilize the angular design for flexible and easy installation in tight spaces. 3、Ensure IP67 protection against dust and water in harsh operating environments. 4、Handle high-power transmission with a 10A current load capacity at 40°C. 5、Connect versatile DC/AC systems with 0-230V voltage compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Certification | c CSA us (OL) | Cable designation | Without label holder |
| Product weight | 80g | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | Connection diagram form B as per industrial standard, 11 mm |
| Electrical connection 1, number of pins/wires | 3 | Electrical connection 1, occupied pins/wires | 3 |
| Electrical connection 1, type of mounting | On air solenoid valve with M3 central screw | Electrical connection for input 1, connection pattern | 00995628 |
| Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 3 |
| Electrical connection 2, occupied pins/wires | 3 | DC operating voltage range | 0V 230V |
| Nominal operating voltage DC | 230V | Operating voltage range AC | 0V 230V |
| Nominal operating voltage AC | 230V | Current rating at 40° C | 10A |
| Surge resistance | 4kV | Protective earth connection | Available |
| Cable length | 0.6m | Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request | Cable diameter | 5.9mm |
| Cable diameter tolerance | ± 0.3 mm | Cable design | 3 x 0.75 mm2 |
| Degree of protection | IP67 | Note on degree of protection | In mounted state |
| Ambient temperature | -25°C 80°C | Ambient temperature with flexible cable installation | -25°C 80°C |
| CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
| LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
| Housing material | TPE-U(PUR) | Housing colour | Black |
| Insulating sheath material | PP | Manufacturer ID | 3579468 |
Specifications may be subject to change without notice
