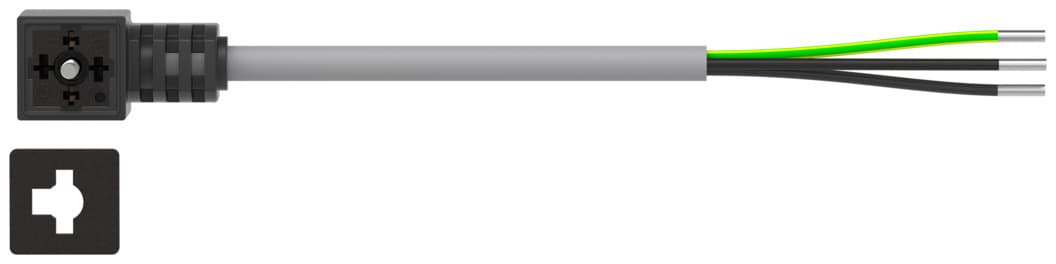

nebv-c1sw3-k-2.5-n-le3-s9
Product ID:15454
Updated: 2026/7/15
Key Features
- 1Achieve CRC 3 corrosion resistance for durability in harsh environments.
- 2Rotate the cable 180° with a ≥52 mm bending radius for flexible installation.
- 3Operate within 0-230 V and -20°C to 70°C for broad compatibility.
- 4Utilize PVC sheath, TPE-U housing, and stainless steel screws for enhanced durability.
- 5Meet EU Low Voltage, RoHS, and UKCA directives for full safety compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable designation | Without label holder | Contact durability | 50 |
| Product weight | 125g | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket, narrow |
| Electrical connection 1, cable outlet | Angled | Electrical connection 1, information on cable outlet | Can be rotated through 180° |
| Electrical connection 1, connection technology | Connection diagram type C as per EN 175301-803 | Electrical connection 1, number of pins/wires | 4 |
| Electrical connection 1, occupied pins/wires | 4 | Electrical connection 1, type of mounting | On air solenoid valve with M2.5 central screw |
| Electrical connection for input 1, connection pattern | 00995798 | Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 3 | Electrical connection 2, occupied pins/wires | 3 |
| DC operating voltage range | 0V 230V | Operating voltage range AC | 0V 230V |
| Current rating at 40° C | 6A | Surge resistance | 4kV |
| Reverse polarity protection | Bipolar | Protective earth connection | Available |
| Cable length | 2.5m | Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request | Bending radius, flexible cable installation | 52mm |
| Cable diameter | 5.2mm | Cable diameter tolerance | ± 0.1 mm |
| Cable design | 3 x 0.5 mm2 | Nominal conductor cross section | 0.5mm2 |
| Degree of protection | IP65 IP67 | Note on degree of protection | In mounted state |
| Ambient temperature | -20°C 70°C | Ambient temperature with flexible cable installation | -5°C 70°C |
| CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 3 - High corrosion stress |
| Material of cable sheath | PVC | Color cable sheath | Gray |
| Housing material | TPE-U(PU) | Housing colour | Black |
| Material of screws | Stainless steel | Seals material | HNBR |
| Material of pin contacts | Copper alloy, tin-plated | Insulating sheath material | PVC |
| Manufacturer ID | 8032628 |
Specifications may be subject to change without notice
