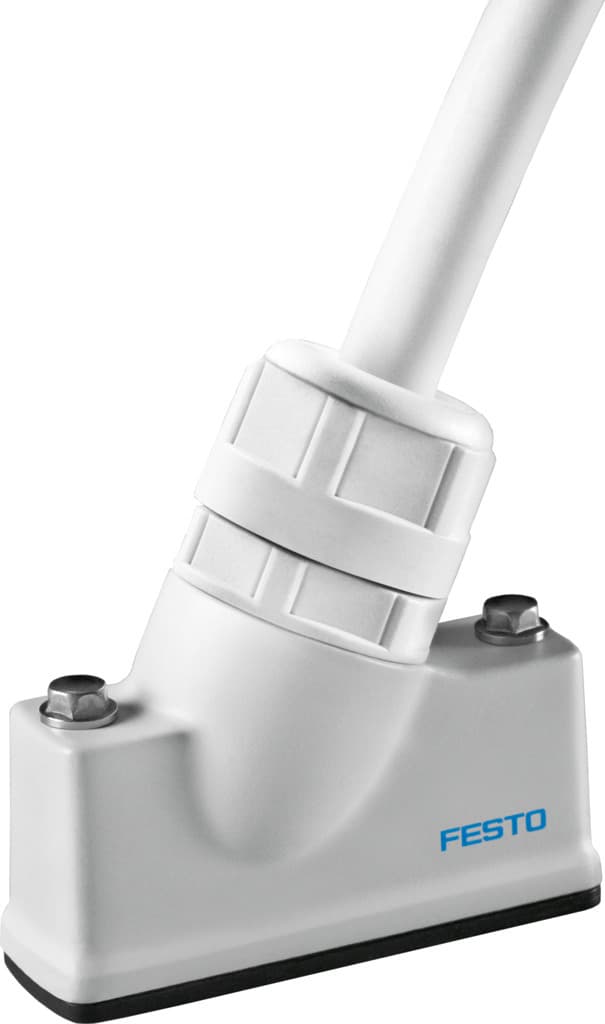

nebv-c-s1wa25hs-k-2.5-n-le25-s10
Product ID:7963
Updated: 2026/4/3
Key Features
- 1Support a 2.6A current rating at 40°C for reliable power transmission. 2、Construct with PVC sheath and PA housing for high corrosion resistance. 3、Feature a secure 25-pin Sub-D connector for easy field and control side integration. 4、Provide IP65/IP67/IP69K protection against harsh environmental conditions. 5、Allow a 41 mm fixed and 122 mm moving bending radius for easy strain-free installation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | DIN 47100 | Cable designation | Without label holder |
| Contact durability | 50 | Product weight | 460g |
| Electrical connection 1, function | Field device end | Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connection technology | Sub-D | Electrical connection 1, number of pins/wires | 25 |
| Electrical connection 1, occupied pins/wires | 25 | Electrical connection 1, type of mounting | 2x screw, 4-40 UNC With seal |
| Electrical connection for input 1, connection pattern | 00995642 | Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 25 | DC operating voltage range | 0V 30V |
| Current rating at 40° C | 2.6A | Protective earth connection | Not available |
| Cable length | 2.5m | Cable characteristic | Standard |
| Bending radius, fixed cable installation | 41mm | Bending radius, flexible cable installation | 122mm |
| Cable diameter | 10.2mm | Cable diameter tolerance | ± 0.25 mm |
| Cable design | 25 x 0.34 mm2 | Nominal conductor cross section | 0.34mm2 |
| Degree of protection | IP65 IP67 IP69K | Note on degree of protection | In mounted state |
| Special features | Easy to clean | Ambient temperature | -5°C 60°C |
| Ambient temperature with flexible cable installation | -5°C 60°C | Storage temperature | -20°C 40°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 3 - High corrosion stress |
| Material of cable sheath | PVC | Color cable sheath | Gray |
| Housing material | PA-reinforced | Housing colour | Gray |
| Material of screws | Stainless steel | Seals material | EPDM |
| Material of pin contacts | Bronze, gold-plated | Insulating sheath material | PVC |
| Manufacturer ID | 2265131 |
Specifications may be subject to change without notice
