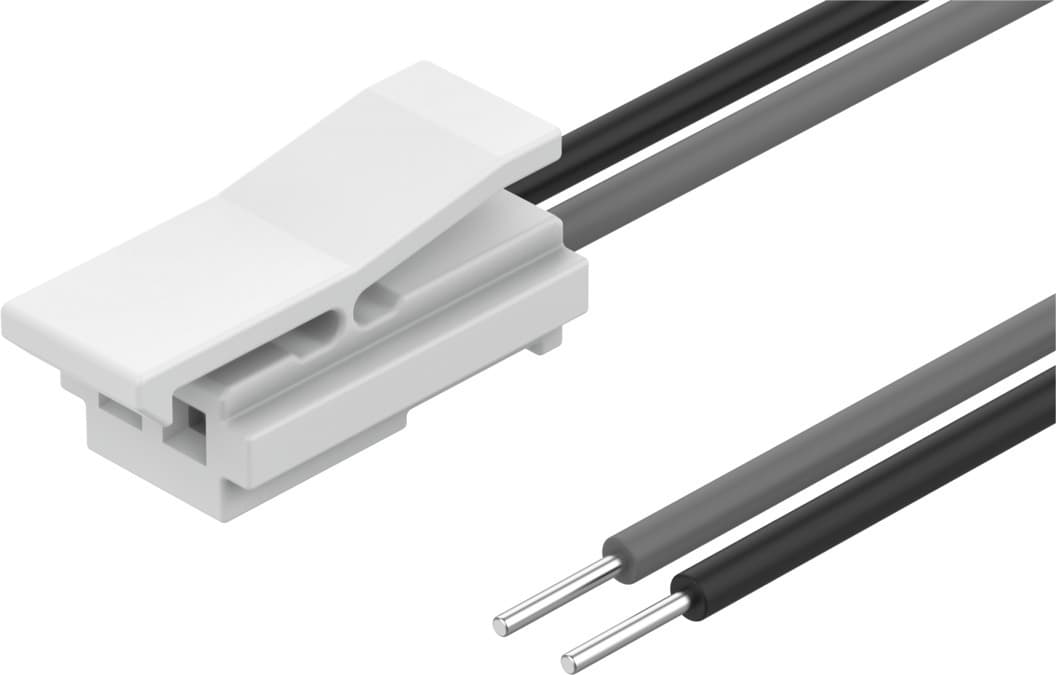

nebv-hpg2-pn-0.3-n-le2
Product ID:16859
Updated: 2026/4/3
Key Features
- 1Utilize high-quality PEEK housing and PVC sheath for durability. 2、Deploy in static applications with a bending radius ≥11 mm. 3、Integrate the compact 2-gram design easily into systems. 4、Mount in any position using the push-pull connection. 5、Ensure compliance with RoHS and VDMA24364 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Max. no. of solenoid coils | 1 | Cable designation | Without label holder |
| Mounting position | Any | Product weight | 2g |
| Electrical connection 1, function | Field device end Switching output | Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Cable with socket | Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | Port pattern HP | Electrical connection 1, number of pins/wires | 2 |
| Electrical connection 1, occupied pins/wires | 2 | Electrical connection 1, type of mounting | Push-pull with interlock to prevent unintentional pulling |
| Electrical connection 2, function | Power supply Control side | Electrical connection 2, connection type | 2x single wires |
| Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 2 |
| Electrical connection 2, occupied pins/wires | 2 | DC operating voltage range | 0V 24V |
| Shield | no | Information on operation | Only operate with external power reduction |
| Cable length | 0.3m | Cable characteristic | for static applications |
| Bending radius, fixed cable installation | 11mm | Cable diameter | 0.96mm |
| Degree of protection | IP40 | Ambient temperature | 0°C 50°C |
| Storage temperature | -20°C 70°C | LABS (PWIS) conformity | VDMA24364 zone III |
| Note on materials | RoHS-compliant | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Housing material | PEEK | Housing colour | Gray |
| Insulating sheath material | PVC | Manufacturer ID | 8122832 |
Specifications may be subject to change without notice
