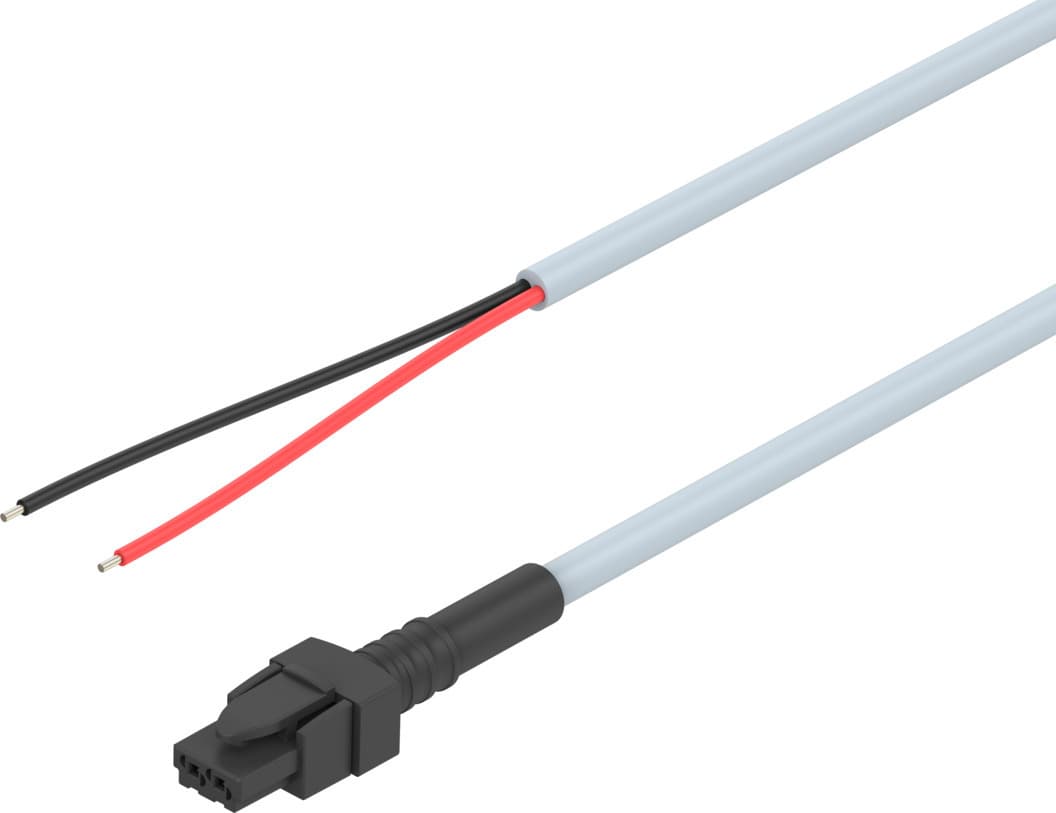

nebv-hsg2-p-5-n-le2
Product ID:13394
Updated: 2026/4/3
Key Features
- 1Optimize field device connections with an angular design. 2、Secure connections quickly using snap-locking mounting. 3、Protect against dust and water with IP40 rating. 4、Support demanding applications with a 3A current rating. 5、Simplify installation with a 5-meter cable length.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable designation | Without label holder | Mounting position | Any |
| Product weight | 70g | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Connection diagram S |
| Electrical connection 1, number of pins/wires | 2 | Electrical connection 1, occupied pins/wires | 2 |
| Electrical connection 1, type of mounting | Snap-locking | Electrical connection for input 1, connection pattern | 00995631 |
| Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 2 |
| Electrical connection 2, occupied pins/wires | 2 | DC operating voltage range | 0V 60V |
| Current rating at 40° C | 3A | Cable length | 5m |
| Cable characteristic | for static applications | Cable diameter | 3.4mm |
| Cable design | 2 x 0.14 mm2 | Nominal conductor cross section | 0.14mm2 |
| Wire ends | Stripped Cut off bluntly | Degree of protection | IP40 |
| Note on degree of protection | In mounted state | Ambient temperature | -5°C 60°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
| Housing material | POM | Housing colour | Black |
| Material of pin contacts | Copper alloy Tin-plated | Insulating sheath material | PVC |
| Manufacturer ID | 566669 |
Specifications may be subject to change without notice
