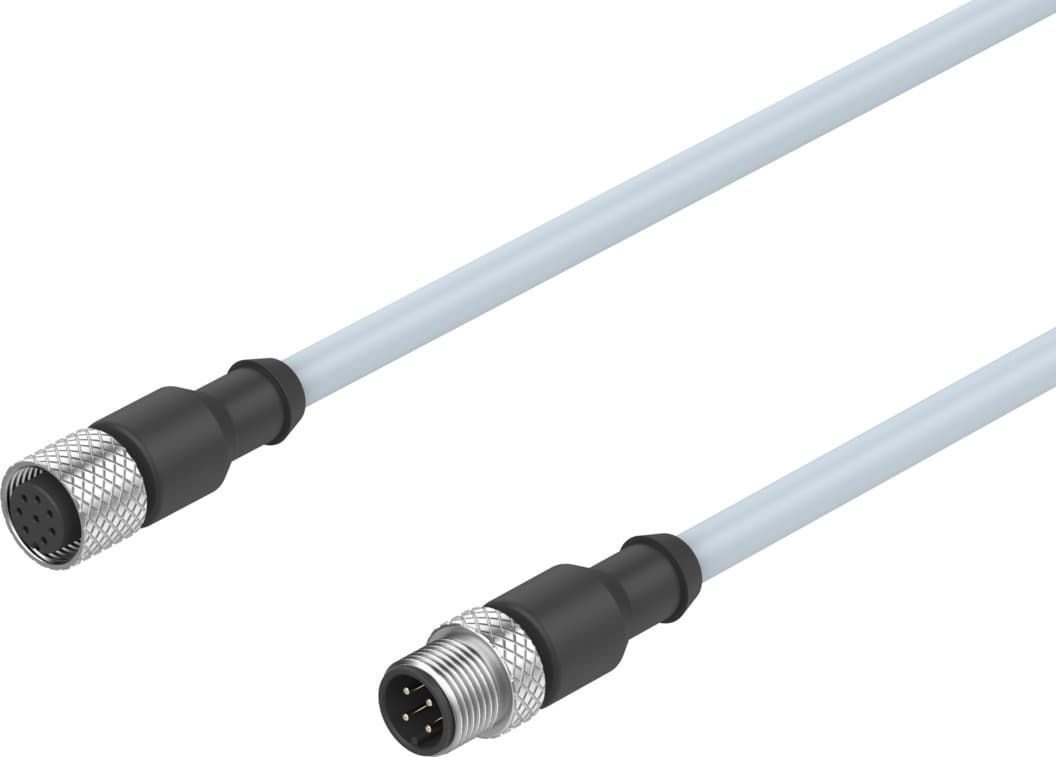

nebv-m12g8-k-5-m12g4
Product ID:12055
Updated: 2026/7/14
Key Features
- 1Meet EN 61076-2-101 standards for reliable connectivity.
- 2Shield cable design to protect against EMI and RFI.
- 3Achieve IP67 rating for dust and water resistance.
- 4Ensure flexible installation with a ≥58 mm bending radius.
- 5Reduce downtime with robust, corrosion-resistant construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | EN 61076-2-101 | Cable designation | Without label holder |
| Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 1, number of pins/wires | 8 |
| Electrical connection 1, occupied pins/wires | 4 | Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00992265 | Electrical connection 2, function | Control side |
| Electrical connection 2, design | Round | Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 2, number of pins/wires | 4 | Electrical connection 2, occupied pins/wires | 4 |
| Electrical connection 2, type of mounting | Screw-type lock | Electrical connection 2, connection pattern | 00995386 |
| DC operating voltage range | 0V 30V | Operating voltage range AC | 0V 30V |
| Current rating at 40° C | 2A | Surge resistance | 0.8kV |
| Shield | yes | Cable length | 5m |
| Cable characteristic | Standard | Bending radius, fixed cable installation | 29mm |
| Bending radius, flexible cable installation | 58mm | Cable diameter | 5.6mm |
| Cable diameter tolerance | ± 0.2 mm | Cable design | 4 x 0.34 mm2 |
| Nominal conductor cross section | 0.34mm2 | Degree of protection | IP67 |
| Note on degree of protection | In mounted state | Ambient temperature | -25°C 85°C |
| Ambient temperature with flexible cable installation | -5°C 80°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant Halogen-free | Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray | Housing material | TPE-U(PUR) |
| Housing colour | Black | Material of screw-type lock | Brass, nickel-plated |
| Seals material | NBR | Material of pin contacts | Brass, gold-plated |
| Insulating sheath material | PP | Manufacturer ID | 553576 |
Specifications may be subject to change without notice
