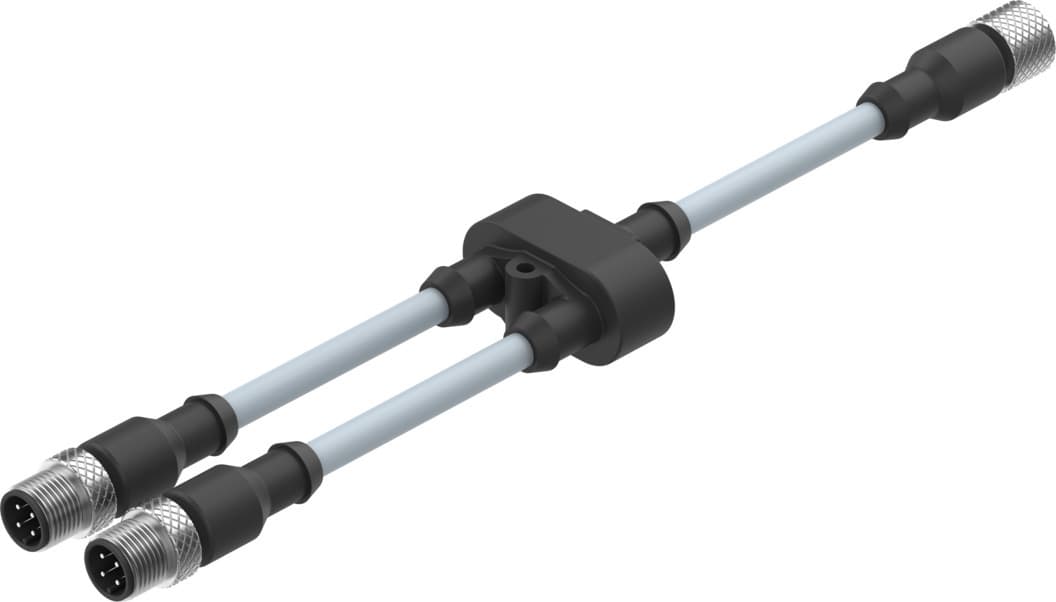

nebv-m12g8-kd-3-m12g4
Product ID:11562
Updated: 2026/4/3
Key Features
- 1Distribute analog I/O efficiently with a Y-structure for proportional valves. 2、Guarantee reliability by conforming to DIN 47100 and EN 61076-2-101 standards. 3、Connect seamlessly using the M12x1 A-coded round plug with Festo systems. 4、Operate in diverse environments with a 1.25m length and -25°C to +80°C range. 5、Withstand harsh conditions with an IP67 degree of protection for durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | DIN 47100 EN 61076-2-101 | Structural design | Y-distributor with cables at both ends |
| Distributor type | 1 to 2 | Additional functions | Distribution of the analog inputs and outputs of a proportional pressure control valve |
| Cable designation | Without label holder | Type of mounting | With through-hole for M3 screw |
| Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 1, number of pins/wires | 8 |
| Electrical connection 1, occupied pins/wires | 5 | Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00992265 | Electrical connection 2, function | Control side |
| Electrical connection 2, design | Round | Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 2, number of pins/wires | 4 | Electrical connection 2, occupied pins/wires | 4 |
| Electrical connection 2, type of mounting | Screw-type lock | Electrical connection 2, connection pattern | 00995386 |
| Electrical connection 3, function | Control side | Electrical connection 3, design | Round |
| Electrical connection 3, connection type | Plug | Electrical connection 3, cable outlet | Straight |
| Electrical connection 3, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 3, number of pins/wires | 4 |
| Electrical connection 3, occupied pins/wires | 3 | Electrical connection 3, type of mounting | Screw-type lock |
| Electrical connection for input 3, connection pattern | 00995635 | DC operating voltage range | 0V 30V |
| Operating voltage range AC | 0V 30V | Current rating at 40° C | 2A |
| Surge resistance | 0.8kV | Shield | yes |
| Cable length 1 | 2.5m | Cable length 2 | 0.5m |
| Cable characteristic | Standard | Bending radius 1, fixed cable installation | 33mm |
| Bending radius 1, flexible cable installation | 66mm | Bending radius 2, fixed cable installation | 33mm |
| Bending radius 2, flexible cable installation | 66mm | Cable diameter 1 | 6.3mm |
| Cable diameter tolerance 1 | ± 0.2 mm | Cable diameter 2 | 6.3mm |
| Cable diameter 2 tolerance | ± 0.2 mm | Cable design | 8 x 0.25 mm2 |
| Nominal conductor cross section | 0.25mm2 | Degree of protection | IP67 |
| Note on degree of protection | In mounted state | Ambient temperature | -25°C 80°C |
| Ambient temperature with flexible cable installation | -5°C 80°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant Halogen-free | Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray | Housing material | TPE-U(PUR) |
| Housing colour | Black | Material of screw-type lock | Brass, nickel-plated |
| Seals material | NBR | Material of pin contacts | Brass, nickel-plated and gold-plated |
| Insulating sheath material | PP | Manufacturer ID | 547888 |
