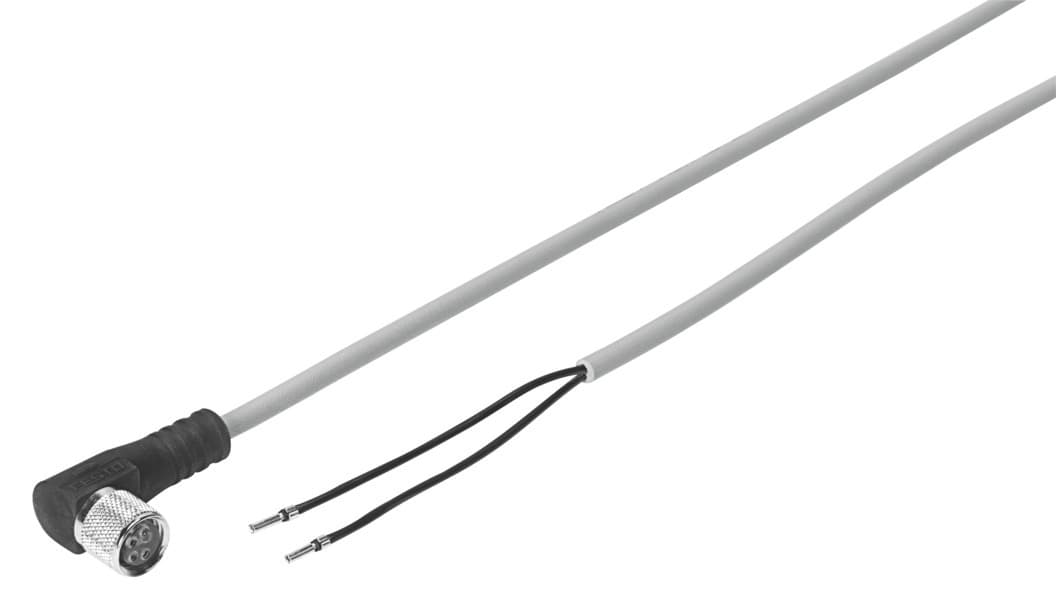

nebv-m8w4l-e-5-le2
Product ID:13064
Updated: 2026/4/3
Key Features
- 1Meet EN 61076-2-101 and ISO 20401 for high reliability. 2、Feature a yellow LED for clear operational status indication. 3、Ensure secure connections with an angled M8x1 socket. 4、Operate within a 20.4-26.4V DC range for energy chains. 5、Utilize TPE-U(PUR) sheath and gold-plated contacts for longevity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | EN 61076-2-101 ISO 20401 | Switching status indication | LED yellow |
| Product weight | 85g | Electrical connection | 4-pin/2-wire Angled socket/cable M8x1 |
| DC operating voltage range | 20.4V 26.4V | Current rating at 40° C | 3A |
| Cable length | 5m | Cable characteristic | Suitable for energy chains |
| Min. cable bending radius | 35mm | Cable diameter | 3.3mm |
| Cable design | 2 x 0.25 mm2 | Wire ends | Cable end sleeve |
| Degree of protection | IP65 IP67 | Ambient temperature | -10°C 50°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | TPE-U(PUR) |
| Housing material | TPE-U(PU) | Material of pin contacts | Brass Gold-plated |
| Insulating sheath material | PVC | Manufacturer ID | 562472 |
Specifications may be subject to change without notice
