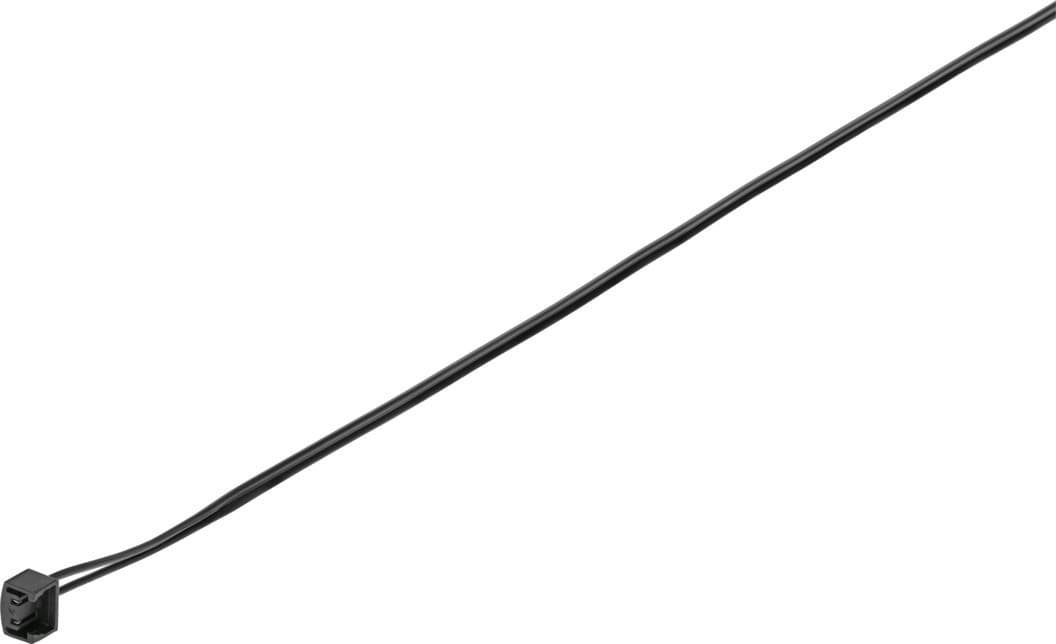

nebv-q7g2-pd-0.1-n-le2
Product ID:16761
Updated: 2026/7/4
Key Features
- 1Weigh only 0.5 g for lightweight applications.
- 2Support up to 20 connections for efficient data transfer.
- 3Feature gold-plated copper alloy contacts for durability.
- 4Allow a bending radius ≥16.5 mm for flexible installation.
- 5Meet all environmental standards for eco-friendly operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable designation | Without label holder | Contact durability | 20 |
| Product weight | 0.5g | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Connection diagram Q7 |
| Electrical connection 1, number of pins/wires | 2 | Electrical connection 1, occupied pins/wires | 2 |
| Electrical connection 1, type of mounting | Inserted | Electrical connection for input 1, connection pattern | 00997311 |
| Electrical connection 2, function | Control side | Electrical connection 2, connection type | Twin wire |
| Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 2 |
| Electrical connection 2, occupied pins/wires | 2 | DC operating voltage range | 0V 30V |
| Current rating at 40° C | 0.3A | Surge resistance | 1.2kV |
| Reverse polarity protection | no | Protective earth connection | Not available |
| Shield | no | Information on operation | Only operate with external power reduction |
| Cable length | 0.1m | Cable characteristic | Basic |
| Connector cable test conditions | Test conditions on request | Bending radius, fixed cable installation | 11mm |
| Bending radius, flexible cable installation | 16.5mm | Cable diameter | 1.1mm |
| Cable design | 2 x 0.08 mm2 | Nominal conductor cross section | AWG28 |
| Wire ends | Tin-plated | Degree of protection | IP40 |
| Ambient temperature | 0°C 50°C | Storage temperature | -20°C 70°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Housing material | PA-reinforced | Housing colour | Black |
| Material of pin contacts | Copper alloy, gold-plated | Insulating sheath material | PVC |
| Manufacturer ID | 8115892 |
Specifications may be subject to change without notice
