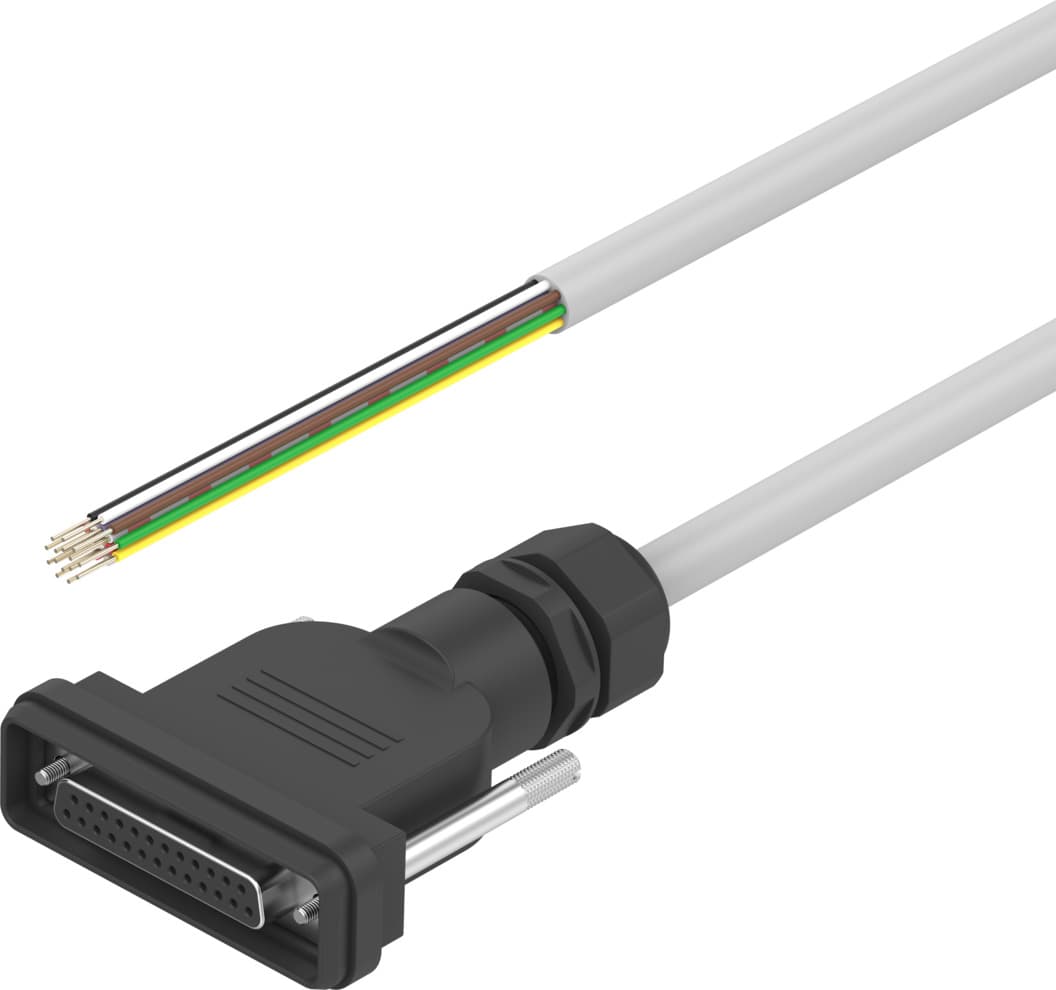

nebv-s1g25-k-5-n-le15
Product ID:10372
Updated: 2026/4/3
Key Features
- 1Provide reliable 25-pin Sub-D to 15-wire open-end connections. 2、Withstand harsh conditions with IP65 and IP67 protection ratings. 3、Ensure easy mounting using the 4-40 UNC-2B type system. 4、Meet environmental and safety standards with RoHS and CE. 5、Operate reliably from -5°C to 50°C at 24V DC.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of mounting | 4-40 UNC-2B | Product weight | 670g |
| Electrical connection 1 | Sub-D socket, 25-pin | Electrical connection 2 | Open end, 15-wire |
| Nominal operating voltage DC | 24V | Cable length | 5m |
| Cable characteristic | Standard | Min. cable bending radius | 90mm |
| Cable diameter | 9mm | Cable design | 15 x 0.34 mm2 |
| Degree of protection | IP65 IP67 In mounted state | Ambient temperature with flexible cable installation | -5°C 50°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | PVC |
| Housing material | PBT | Material of union nut | PA |
| Seals material | TPE-O | Manufacturer ID | 538223 |
Specifications may be subject to change without notice
