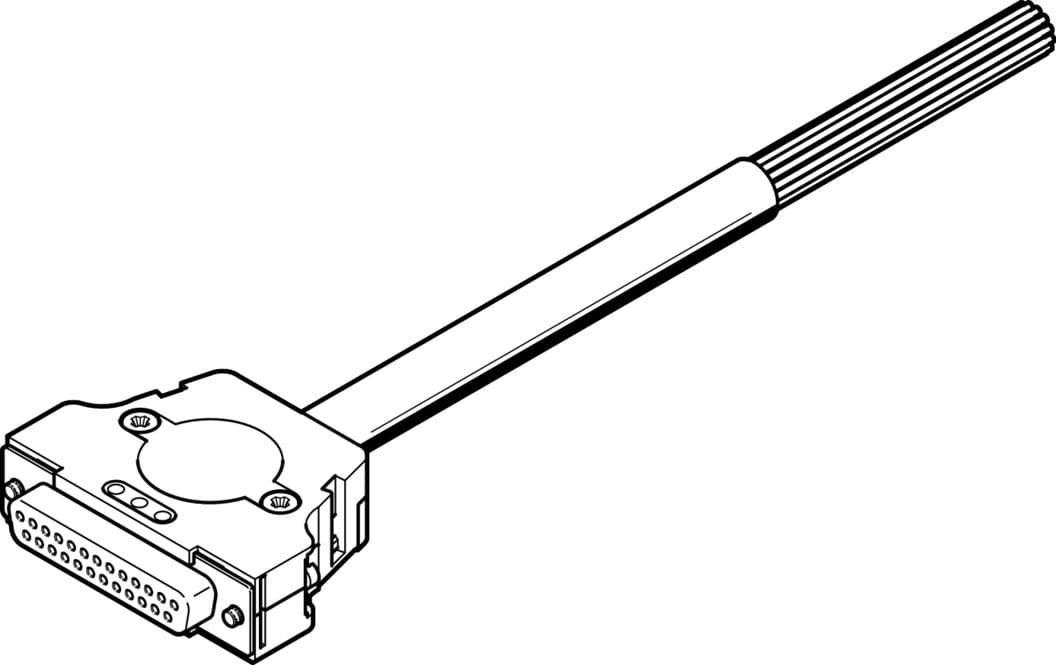

nebv-s1g25-k-5-n-le25
Product ID:10375
Updated: 2026/4/3
Key Features
- 1Ensure reliable electrical connections based on DIN 47100 standard. 2、Provide secure 25-pin Sub-D socket for valve applications. 3、Deliver durable performance with a product weight of 930 grams. 4、Support frequent connections with a frequency up to 50 Hz. 5、Meet environmental safety standards as a RoHS-compliant cable.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of mounting | 4-40 UNC-2B | Product weight | 910g |
| Electrical connection 1 | Sub-D socket, 25-pin | Electrical connection 2 | Open end, 25-wire |
| Nominal operating voltage DC | 24V | Cable length | 5m |
| Cable characteristic | Standard | Min. cable bending radius | 105mm |
| Cable diameter | 10.5mm | Cable design | 20 x 0.25 mm2 + 5 x 0.34 mm2 |
| Degree of protection | IP65 IP67 In mounted state | Ambient temperature with flexible cable installation | -5°C 50°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | PVC |
| Housing material | PBT | Material of union nut | PA |
| Seals material | TPE-O | Manufacturer ID | 538226 |
Specifications may be subject to change without notice
