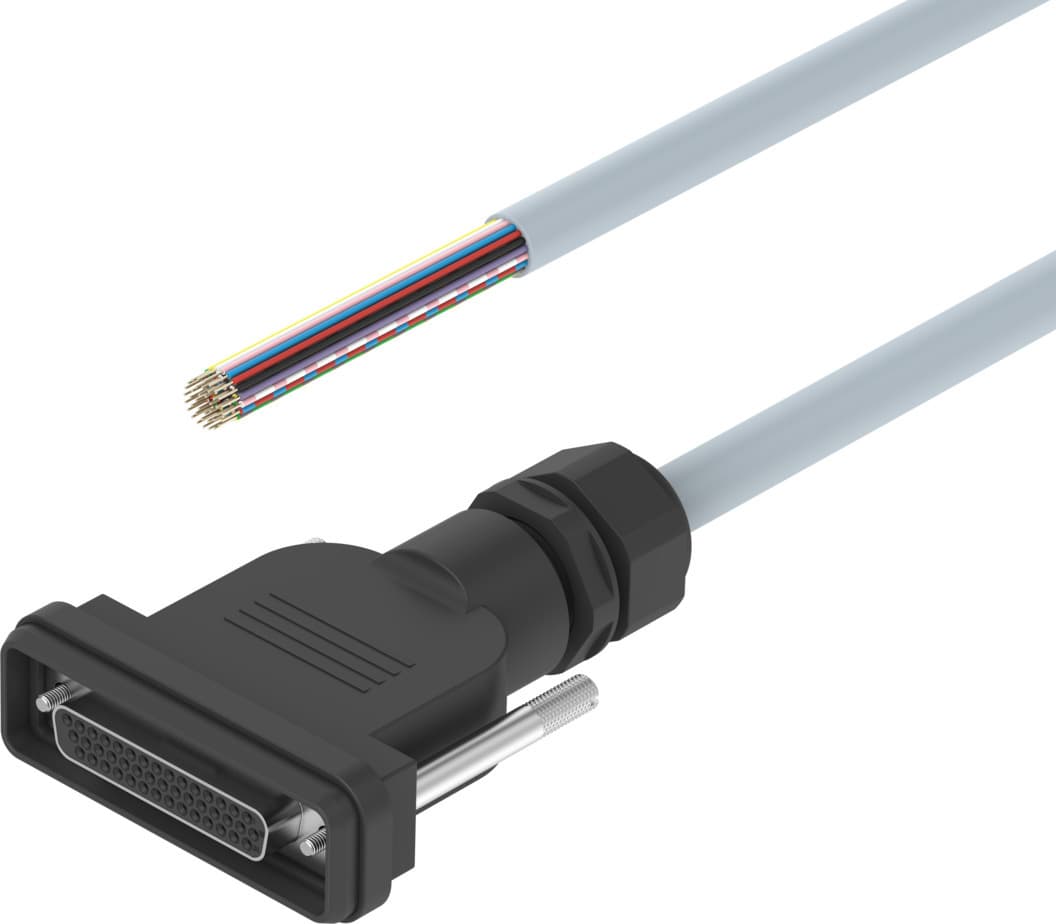

nebv-s1g44-k-5-n-le39
Product ID:13166
Updated: 2026/4/3
Key Features
- 1Construct with high-quality PVC and PC materials for durability. 2、Feature a secure 44-pin Sub-D socket for reliable connections. 3、Install in any position using standard 4-40 UNC screws. 4、Support 0.86 A at 40°C for demanding applications. 5、Comply with EU RoHS and IP65/IP67 protection standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of mounting | 4-40UNC | Mounting position | Any |
| Product weight | 737g | Electrical connection | 44-pin Socket Sub-D |
| DC operating voltage range | 30V | Current rating at 40° C | 0.86A |
| Cable length | 5m | Cable characteristic | for static applications |
| Min. cable bending radius | 95mm | Cable diameter | 9.6mm |
| Cable diameter tolerance | ± 0.5 mm | Cable design | 40 x 0.14 mm2 |
| Degree of protection | IP65 IP67 In mounted state | Ambient temperature | -5°C 60°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | PVC |
| Housing material | PBT | Material of pin contacts | Bronze Gold-plated |
| Manufacturer ID | 565290 |
Specifications may be subject to change without notice
