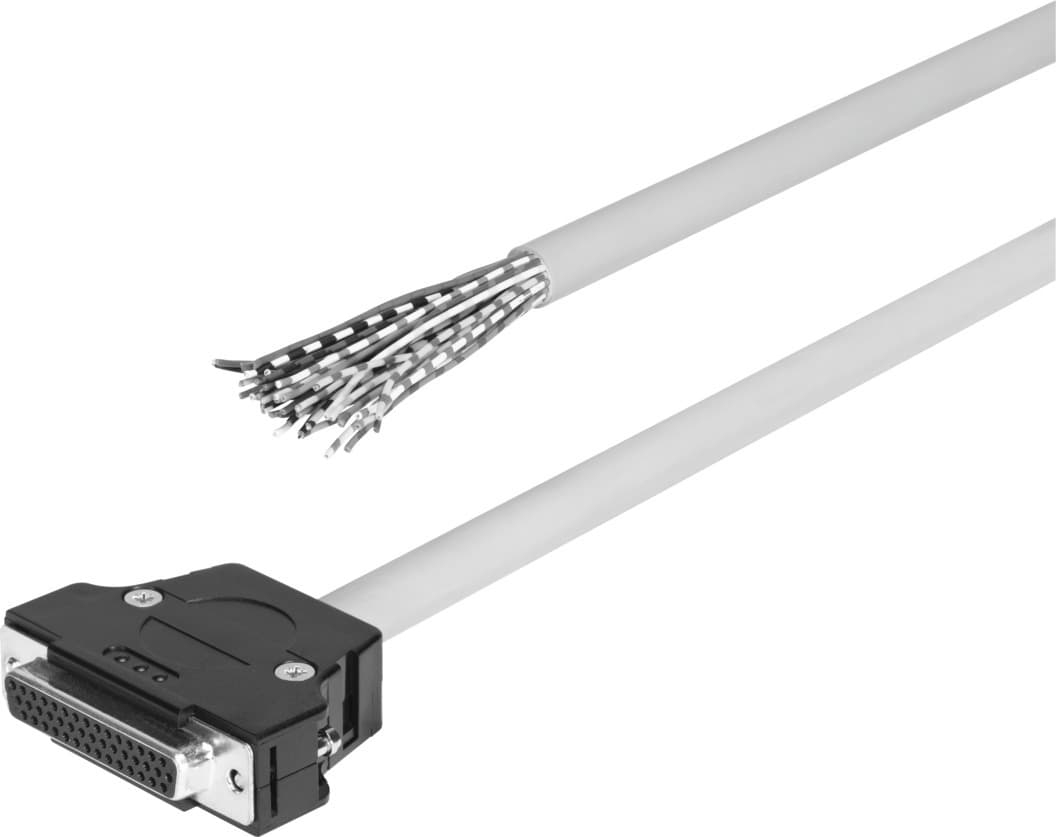

nebv-s1g44-k-5-n-le44-s6
Product ID:14174
Updated: 2026/7/15
Key Features
- 1Ensure robust connections with a 44-pin Sub-D socket and angular design.
- 2Guarantee durability using a PVC sheath and PC-reinforced housing.
- 3Meet industry standards including DIN 47100 and RoHS compliance.
- 4Operate reliably across a wide temperature range from -35°C to 80°C.
- 5Simplify integration for cylinders in diverse industrial automation setups.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | DIN 47100 | Cable designation | Without label holder |
| Contact durability | 50 | Product weight | 830g |
| Electrical connection 1, function | Field device end | Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | Sub-D | Electrical connection 1, number of pins/wires | 44 |
| Electrical connection 1, occupied pins/wires | 44 | Electrical connection 1, type of mounting | 2x screw, 4-40 UNC |
| Electrical connection for input 1, connection pattern | 00995646 | Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 44 | Electrical connection 2, occupied pins/wires | 44 |
| DC operating voltage range | 0V 30V | Current rating at 40° C | 0.86A |
| Surge resistance | 2.4kV | Reverse polarity protection | yes |
| Cable length | 5m | Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request | Bending radius, fixed cable installation | 42mm |
| Bending radius, flexible cable installation | 126mm | Cable diameter | 10.2mm |
| Cable diameter tolerance | ± 0.3 mm | Cable design | 44 x 0.14 mm2 |
| Nominal conductor cross section | 0.14mm2 | Wire ends | Cut off bluntly |
| Degree of protection | IP40 | Note on degree of protection | In mounted state |
| Ambient temperature | -35°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
| Storage temperature | -25°C 75°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Contamination level | 2 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | PVC |
| Color cable sheath | Gray | Housing material | PC-reinforced |
| Housing colour | Black | Material of screws | Brass, nickel-plated |
| Material of pin contacts | Bronze Gold-plated | Insulating sheath material | PVC |
| Manufacturer ID | 575114 |
Specifications may be subject to change without notice
