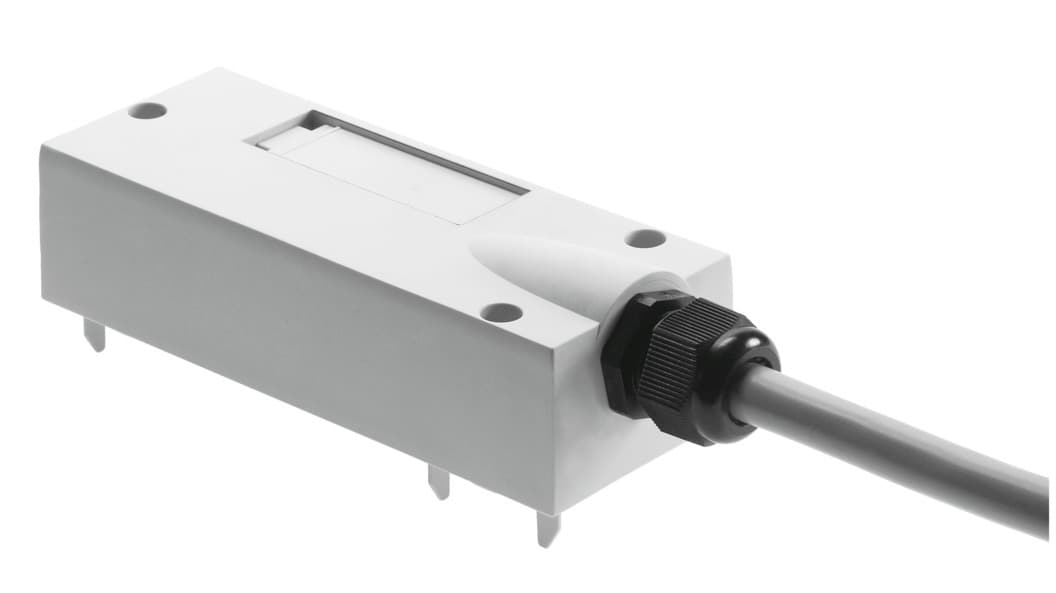

nebv-s1w37-e-5-le26
Product ID:10474
Updated: 2026/7/4
Key Features
- 1Ensure reliable multi-pin connections for valve terminals.
- 2Resist corrosion with CRC 2 rating for indoor use.
- 3Deploy in energy chains using standard E characteristic.
- 4Optimize performance with 0.34 mm² conductor cross-section.
- 5Simplify installation via a pre-assembled cable end.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Area of application | Only for multi-pin connection of valve manifold VTSA/VTSA-F | Conforms to standard | DIN 47100 |
| Cable designation | With label holder | Product weight | 1006g |
| Electrical connection 1, function | Field device end | Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connection technology | Sub-D | Electrical connection 1, number of pins/wires | 37 |
| Electrical connection 1, occupied pins/wires | 26 | Electrical connection 1, type of mounting | 3x M4 screw |
| Electrical connection for input 1, connection pattern | 00995644 | Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 26 | Electrical connection 2, occupied pins/wires | 26 |
| DC operating voltage range | 0V 30V | Current rating at 40° C | 2A |
| Surge resistance | 1kV | Cable length | 5m |
| Cable characteristic | Suitable for energy chains | Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | 42mm | Bending radius, flexible cable installation | 104mm |
| Cable diameter | 10.4mm | Cable design | 26 x 0.34 mm2 |
| Nominal conductor cross section | 0.34mm2 | Degree of protection | IP65 NEMA 4 |
| Note on degree of protection | In mounted state | Ambient temperature | -5°C 50°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray | Housing material | PA |
| Insulating sheath material | PVC | Manufacturer ID | 539244 |
Specifications may be subject to change without notice
