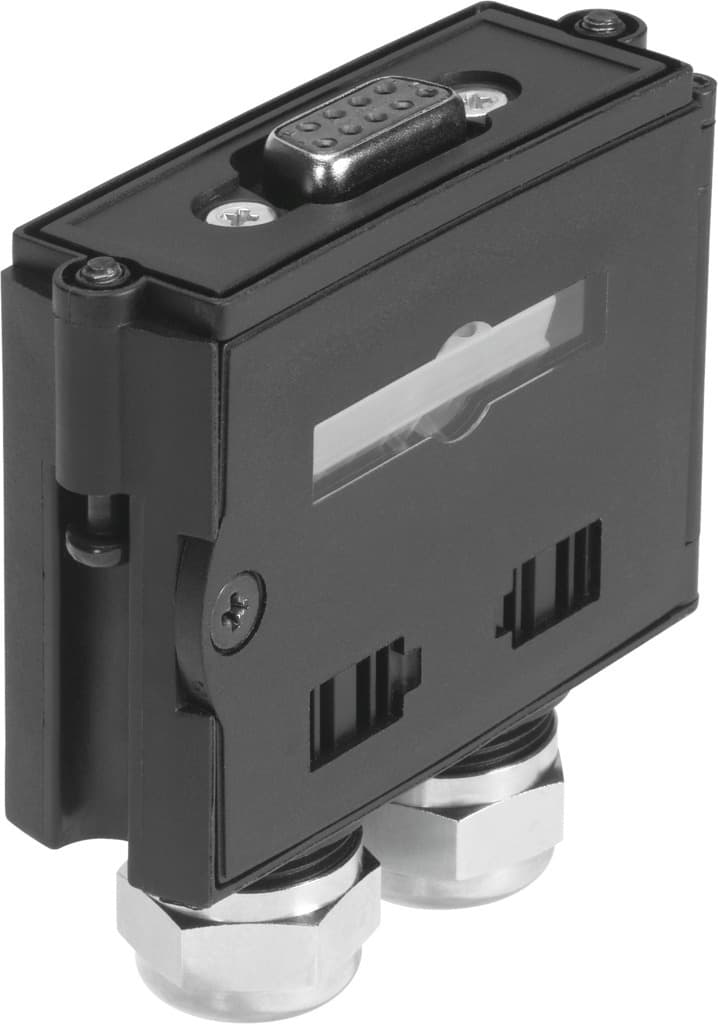

neca-s1g9-p9-mp1
Product ID:11639
Updated: 2026/4/3
Key Features
- 1Secure your installation with through-hole mounting for versatile placement. 2、Reduce system weight using a robust yet lightweight 60-gram design. 3、Connect flexibly with both 9-pin sub-D and screw terminal interfaces. 4、Operate reliably within a 21.6-26.4V DC range at a nominal 24V. 5、Ensure durable conductivity with a 1A current rating and 0.34-1mm² cross-section.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of mounting | With through-hole | Product weight | 60g |
| Electrical connection 1 | Socket, Sub-D, 9-pin | Electrical connection 2 | Screw terminal, 9-pin |
| DC operating voltage range | 21.6V 26.4V | Nominal operating voltage DC | 24V |
| Current rating at 40° C | 1A | Approved cable diameter | 5mm 10mm |
| Connection cross section | 0.34mm2 1mm2 | Information on port cross section | 0.34–0.5 mm2 when using cable end sleeves |
| Degree of protection | IP65 as per IEC 60529 | Ambient temperature | 0°C 50°C |
| Storage temperature | -20°C 70°C | Relative air humidity | 95 % Non-condensing |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Housing material | PA-reinforced | Material of union nut | Brass |
| Material of screws | Steel | Seals material | NBR |
| Manufacturer ID | 548719 |
Specifications may be subject to change without notice
