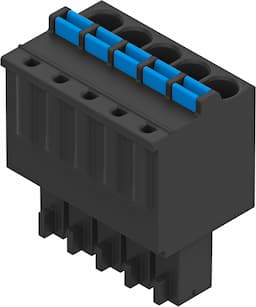

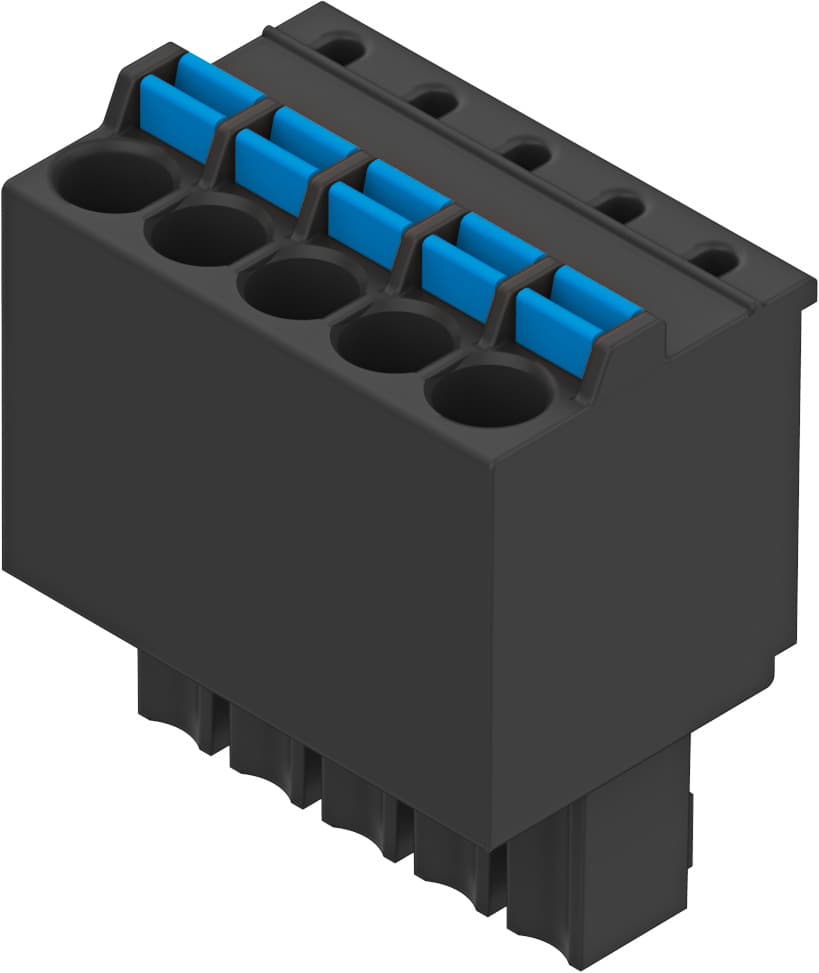

necc-l8g5-c1
Product ID:16697
Updated: 2026/4/3
Key Features
- 1Ensure reliable and efficient electrical connections. 2、Construct with durable PA housing for longevity. 3、Achieve CRC 1 classification for minimal corrosion. 4、Apply across a wide range of industrial applications. 5、Utilize spring-loaded terminals for secure mounting.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable outlet | Straight | Product weight | 3.8g |
| Pack size | 1 | Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket | Electrical connection 1, connection technology | Connection diagram L8 |
| Electrical connection 1, number of pins/wires | 5 | Electrical connection 1, type of mounting | Inserted |
| Electrical connection for input 1, connection pattern | 00997297 | Electrical connection 2, connection technology | Spring-loaded terminal |
| DC operating voltage range | 0V 300V | Current rating at 40° C | 8A |
| Surge resistance | 1.6kV | Shield | no |
| Nominal conductor cross section | AWG28 - 16 | Degree of protection | IP20 |
| Note on degree of protection | In mounted state | Ambient temperature | -40°C 115°C |
| LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | Housing material | PA |
| Housing colour | Black | Manufacturer ID | 8106756 |
Specifications may be subject to change without notice
