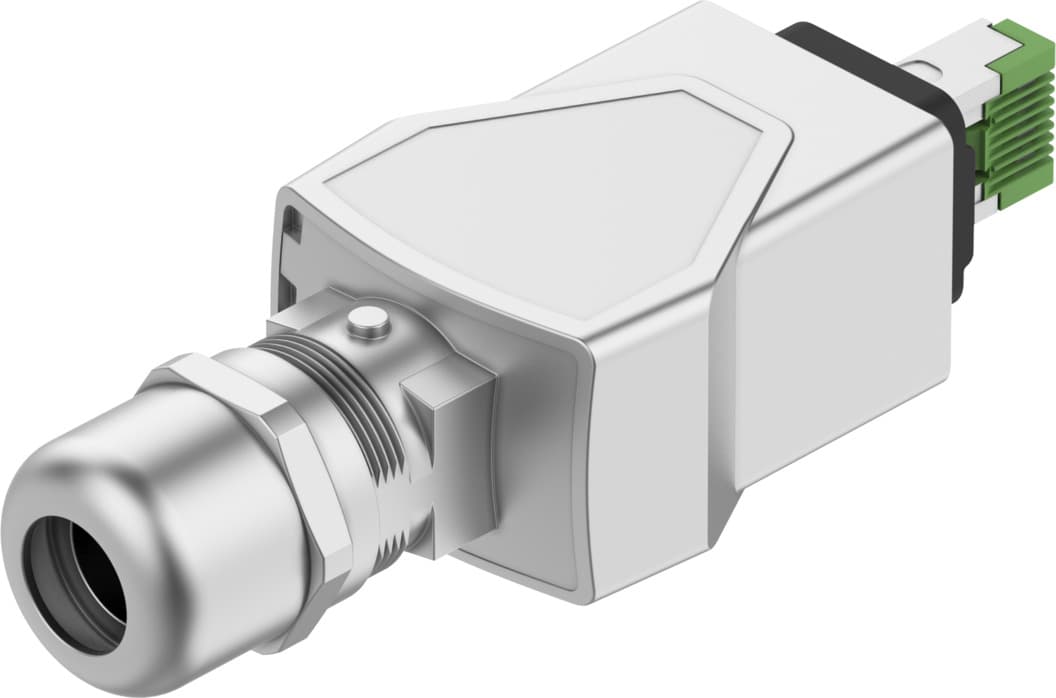

necc-m-s-r3g8pp-hx-pn
Product ID:8774
Updated: 2026/4/3
Key Features
- 1Ensure reliable performance in demanding industrial environments. 2、Support PROFINET connection for AWG 22-23 cables. 3、Adhere to TIA-568A and TIA-568B standards seamlessly. 4、Choose from BN or BU configurations for flexibility. 5、Handle and install easily with a 0.090 kg weight.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Protocol | Ethernet PROFINET | Additional functions | Meets AIDA requirements |
| Contact durability | 750 | Cable outlet | Straight |
| Product weight | 90g | Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Plug | Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | RJ45 | Electrical connection 1, number of pins/wires | 8 |
| Electrical connection 1, occupied pins/wires | 8 | Electrical connection 1, type of mounting | Push-pull with interlock to prevent unintentional pulling |
| Electrical connection for input 1, connection pattern | 00995653 | Electrical connection 2, connection technology | Insulation displacement connector |
| DC operating voltage range | 50V | Nominal operating voltage DC | 50V |
| Current rating at 40° C | 1.75A | Surge resistance | 1.5kV |
| Shield | 360° possible | Transmission characteristics | Category 5 according to ISO/IEC 11801 Category 5 according to TIA/EIA-568B |
| Protection against direct and indirect contact | PELV | Cable fitting | Pg11 hex A/F 20 |
| Cable diameter | 5.5mm 10mm | Wire diameter | 1.6mm |
| Nominal conductor cross section | AWG22 AWG23 | Information on port cross section | 0.25 – 0.32 mm2 for conductor 1-wire |
| Degree of protection | IP65 IP67 | Note on degree of protection | In mounted state |
| Ambient temperature | -40°C 70°C | Storage temperature | -40°C 70°C |
| LABS (PWIS) conformity | VDMA24364-A1-L | Note on materials | RoHS-compliant |
| Fire tested | UL94 V-0 | Contamination level | 2 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | Housing material | Die-cast zinc, nickel-plated |
| Housing colour | Silver | Seals material | NBR TPE-V |
| Material of pin contacts | Copper alloy, nickel-plated and gold-plated | Permissible insulating sheath | PP PUR PVC |
| Manufacturer ID | 5195384 |
