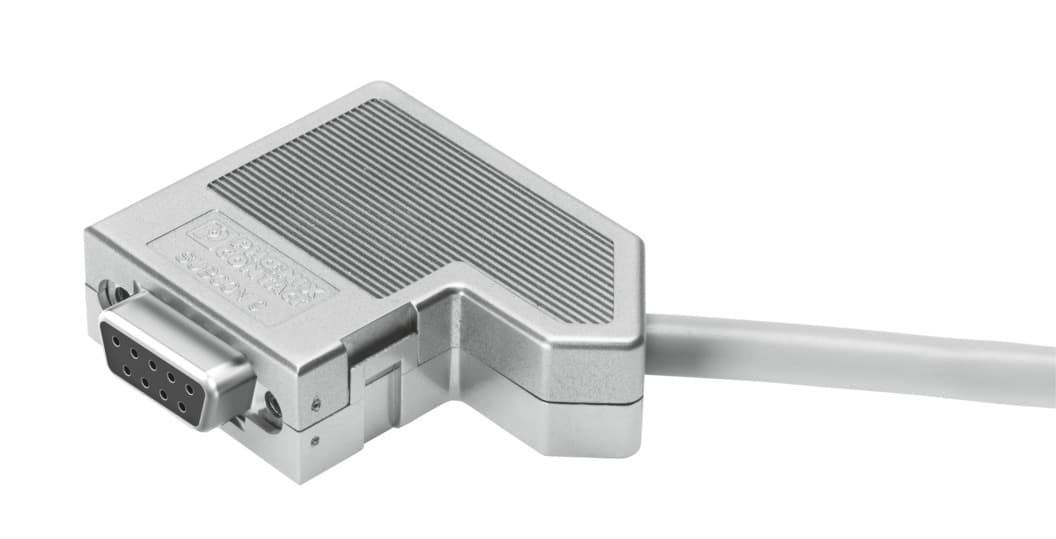

necc-s1g9-c2-m
Product ID:14462
Updated: 2026/4/3
Key Features
- 1Achieve a compact design with 39.4 mm height and 58 mm length. 2、Utilize the Sub-D, 9-pin socket field bus interface for efficient communication. 3、Handle and install easily with a 24G product weight. 4、Protect against dust and water with an IP40 degree of protection. 5、Ensure compliance with EU Low Voltage Directive and RoHS regulations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Height | 39.4 mm | Length | 58 mm |
| Product weight | 24g | Fieldbus interface | Sub-D, 9-pin, socket |
| Electrical connection | 9-pin/9-pin Sub-D/screw terminal | Baud rate | 1 Mbit/s |
| Approved cable diameter | 8mm | Degree of protection | IP40 |
| Ambient temperature | -20°C 70°C | CE marking (see declaration of conformity) | As per EU low voltage directive |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | Manufacturer ID | 576031 |
Specifications may be subject to change without notice
