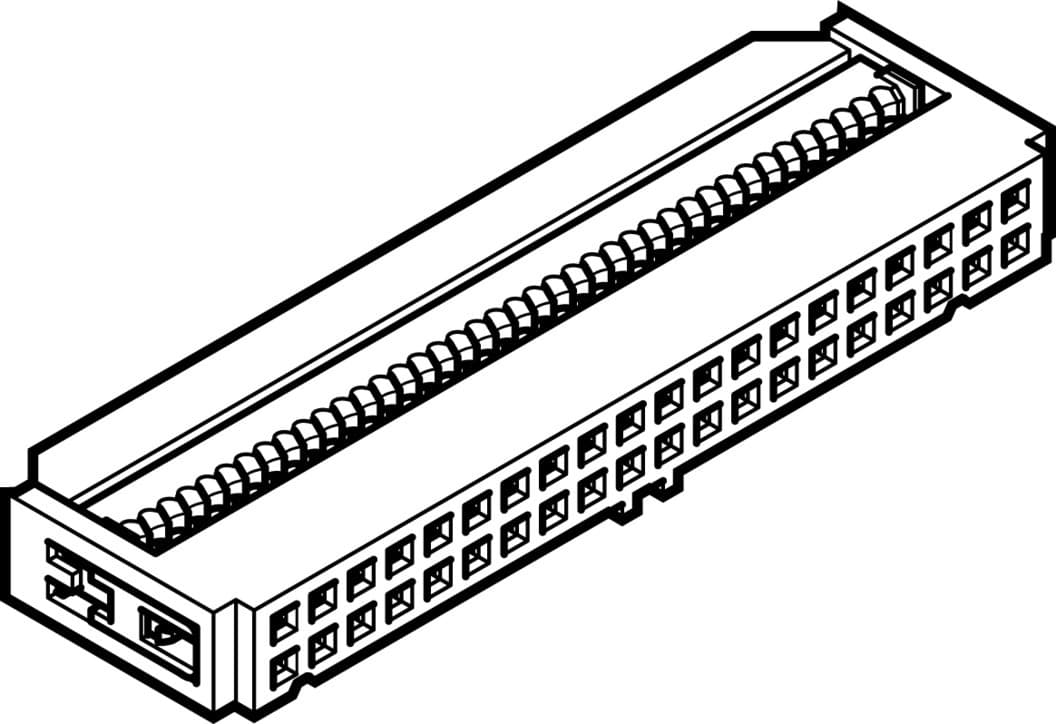

necu-fcg40-k
Product ID:13583
Updated: 2026/7/15
Key Features
- 1Ensure safe connections with IP40 protection.
- 2Operate across a wide 0-30V DC voltage range.
- 3Utilize a durable, corrosion-resistant PBT-reinforced housing.
- 4Meet international standards with EN 60603-13 compliance.
- 5Access connections easily with an angular design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | EN 60603-13 | Contact durability | 50 |
| Cable outlet | Straight | Product weight | 5g |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, connection technology | Connection diagram FC | Electrical connection 1, number of pins/wires | 40 |
| Electrical connection 1, type of mounting | Snap-locking | Electrical connection 2, connection technology | Insulation displacement connector |
| DC operating voltage range | 0V 30V | Current rating at 40° C | 1.5A |
| Nominal conductor cross section | AWG26 | Degree of protection | IP40 |
| Ambient temperature | -5°C 50°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS-compliant | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Housing material | PBT-reinforced | Material of pin contacts | Bronze Gold-plated |
| Manufacturer ID | 570895 |
Specifications may be subject to change without notice
