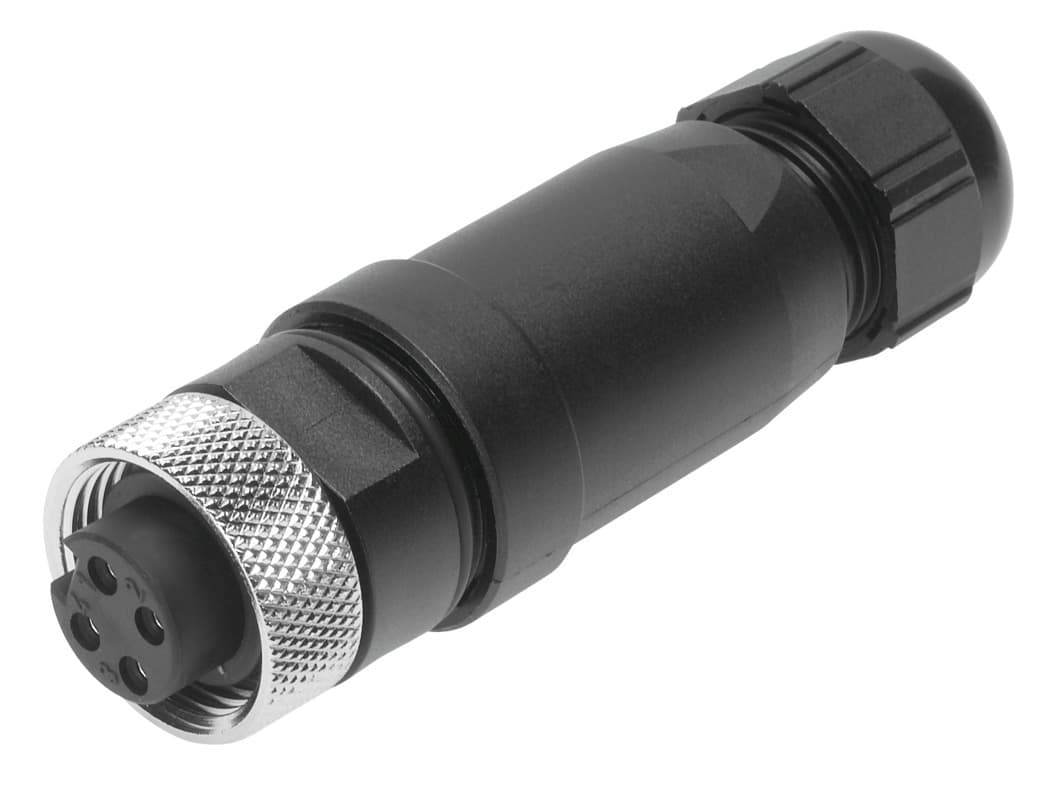

necu-g78g4-c2
Product ID:10875
Updated: 2026/7/4
Key Features
- 1Ensure secure 4-pin connections with the NECU-G78G4-C2 power supply socket.
- 2Meet EN 61984 standards for guaranteed safety and quality.
- 3Connect cables from 6 mm to 12 mm in diameter flexibly.
- 4Support AC/DC operations up to 250 V for versatile use.
- 5Utilize the durable 58.7 g straight socket design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61984 | Certification | c CSA us (OL) |
| Product weight | 58.7g | Electrical connection 1 | Straight socket, 7/8", 4-pin |
| Plug coding | ODVA AutoSIG | Electrical connection 2 | Screw terminal |
| DC operating voltage range | 0V 250V | Operating voltage range AC | 0V 250V |
| Current rating at 40° C | 10A | Surge resistance | 2.5kV |
| Approved cable diameter | 6mm 12mm | Connection cross section | 1.5mm2 |
| Degree of protection | IP67 | Ambient temperature | -25°C 80°C |
| CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | PA | Housing colour | Black |
| Material of union nut | Die-cast zinc, nickel-plated | Seals material | FPM NBR |
| Material of pin contacts | Copper alloy, gold-plated | Manufacturer ID | 543108 |
Specifications may be subject to change without notice
