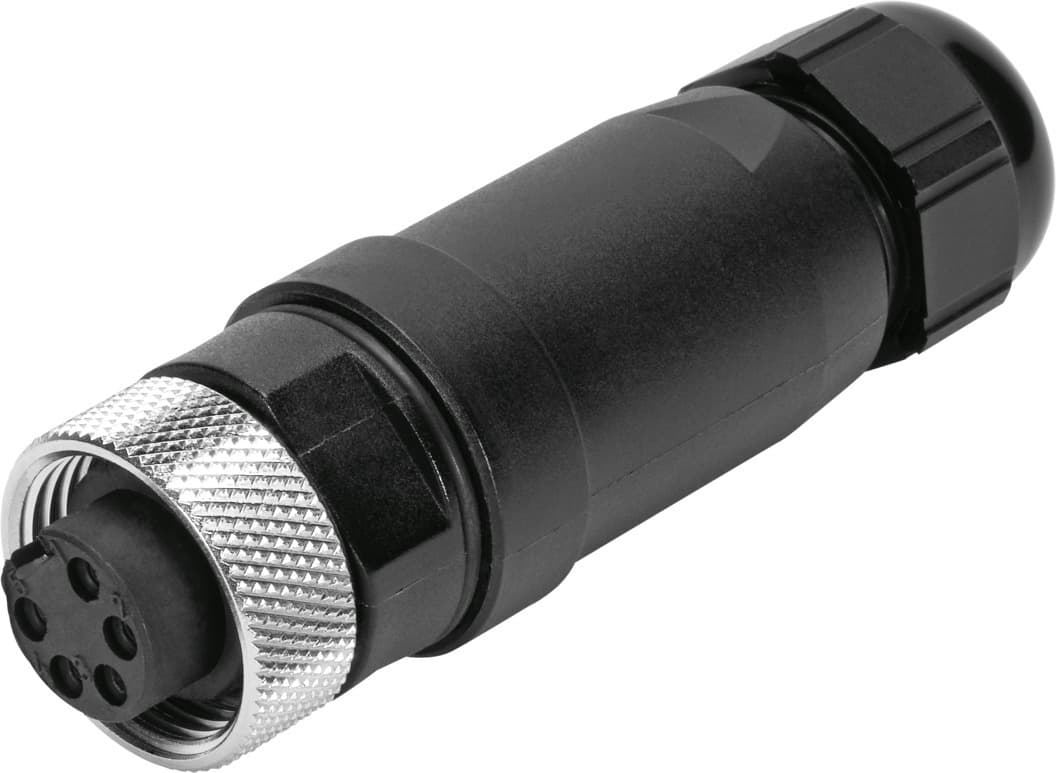

necu-g78g5-c2
Product ID:10874
Updated: 2026/4/3
Key Features
- 1Ensure secure connections with a 5-pin 7/8" straight socket design. 2、Meet EN 61984 and CSA US standards for guaranteed quality. 3、Operate across a versatile 0-250 V DC/AC voltage range. 4、Withstand electrical surges with 2.5 kV surge voltage strength. 5、Utilize durable, RoHS-compliant PA housing and gold-plated contacts.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61984 | Certification | c CSA us (OL) |
| Product weight | 50g | Electrical connection 1 | Straight socket, 7/8", 5-pin |
| Plug coding | NFPA/T3.5.29 R1-2003 | Electrical connection 2 | Screw terminal |
| DC operating voltage range | 0V 250V | Operating voltage range AC | 0V 250V |
| Current rating | 8A | Surge resistance | 2.5kV |
| Approved cable diameter | 6mm 12mm | Connection cross section | 1.5mm2 |
| Degree of protection | IP67 | Ambient temperature | -25°C 80°C |
| CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | PA | Housing colour | Black |
| Material of union nut | Die-cast zinc, nickel-plated | Seals material | FPM NBR |
| Material of pin contacts | Copper alloy, gold-plated | Manufacturer ID | 543107 |
Specifications may be subject to change without notice
