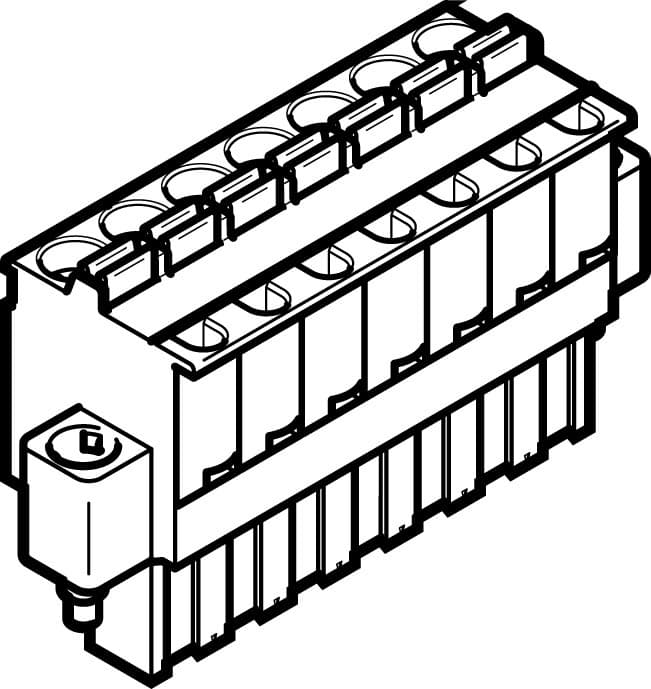

necu-l3g7-c1
Product ID:14464
Updated: 2026/4/3
Key Features
- 1Withstand up to 100 switching cycles for reliable connections. 2、Mount in any position for flexible installation. 3、Secure 7-pin spring-loaded terminal for efficient connections. 4、Operate with DC voltage from 0 V to 30 V. 5、Meet c UL us-listed (OL) and RoHS safety and environmental regulations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Certification | c UL us - Listed (OL) | Contact durability | 100 |
| Mounting position | Any | Product weight | 12.8g |
| Electrical connection | 7-pin Spring-loaded terminal Plug, straight | DC operating voltage range | 0V 30V |
| Current rating at 40° C | 12A | Surge resistance | 4kV |
| Connection cross section | 0.2mm2 2.5mm2 | Ambient temperature | -40°C 85°C |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Housing material | PA | Housing colour | Black |
| Material of pin contacts | Copper alloy Tin-plated | Manufacturer ID | 576319 |
Specifications may be subject to change without notice
