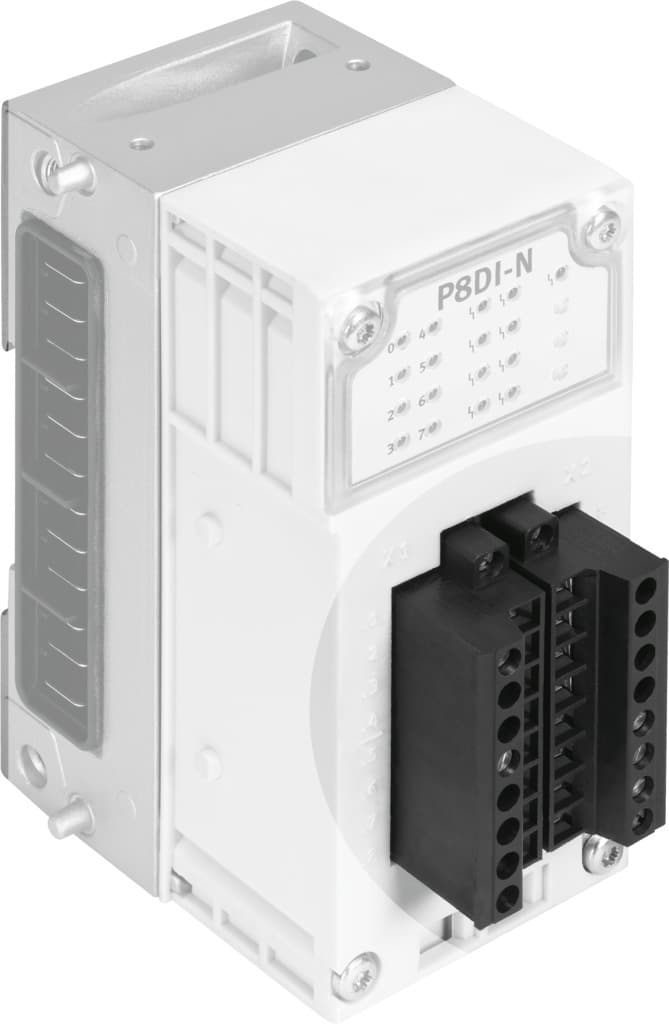

necu-l3g8-c2
Product ID:13212
Updated: 2026/4/3
Key Features
- 1Achieve 100 connection cycles for versatile, repeated use. 2、Select optional mounting positions for flexible installation. 3、Ensure 4KV surge immunity for reliable operation. 4、Utilize an 8-pin electrical connection with a secure screw terminal. 5、Employ RoHS-compliant materials for environmental safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Contact durability | 100 | Mounting position | Any |
| Product weight | 56g | Electrical connection | 8-pin Screw terminal Plug, straight |
| DC operating voltage range | 0V 30V | Current rating at 40° C | 12A |
| Surge resistance | 4kV | Connection cross section | 0.2mm2 2.5mm2 |
| Ambient temperature | -40°C 85°C | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Housing material | PA |
| Housing colour | Black | Material of pin contacts | Copper alloy Tin-plated |
| Manufacturer ID | 565710 |
Specifications may be subject to change without notice
