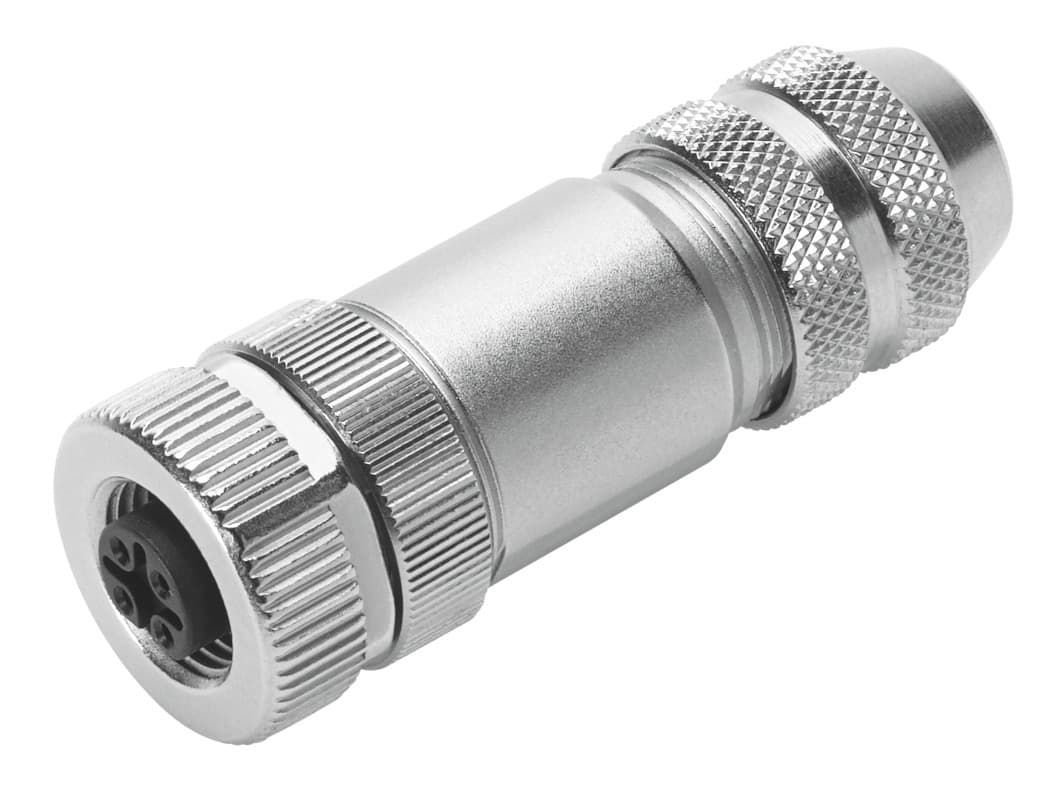

necu-m-b12g5-c2-pb
Product ID:707
Updated: 2026/7/4
Key Features
- 1Meet EN 61076-2-101 and EN 61984 standards for reliable connections.
- 2Feature an M12x1, 5-pin B-coded straight socket for easy integration.
- 3Withstand demanding conditions with 0.17A at 40°C and 1.5kV surge resistance.
- 4Accommodate cable diameters from 6mm to 8mm for flexible installation.
- 5Ensure IP67 protection and CE compliance for safety in harsh environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61076-2-101 EN 61984 | Product weight | 48.7g |
| Electrical connection 1 | Straight socket, M12x1, 5-pin, B-coded, shieldable | Plug coding | B |
| Electrical connection 2 | Screw terminal, can be shielded | DC operating voltage range | 0V 125V |
| Operating voltage range AC | 0V 125V | Current rating at 40° C | 4A |
| Surge resistance | 1.5kV | Transmission characteristics | DIN EN 50173/CAT 5 |
| Approved cable diameter | 6mm 8mm | Connection cross section | 0.14mm2 0.75mm2 |
| Degree of protection | IP67 | Ambient temperature | -25°C 85°C |
| CE marking (see declaration of conformity) | As per EU low voltage directive | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Contamination level | 3 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | Housing material | Die-cast zinc Nickel-plated |
| Material of pin contacts | Brass Gold-plated | Manufacturer ID | 1067905 |
Specifications may be subject to change without notice
