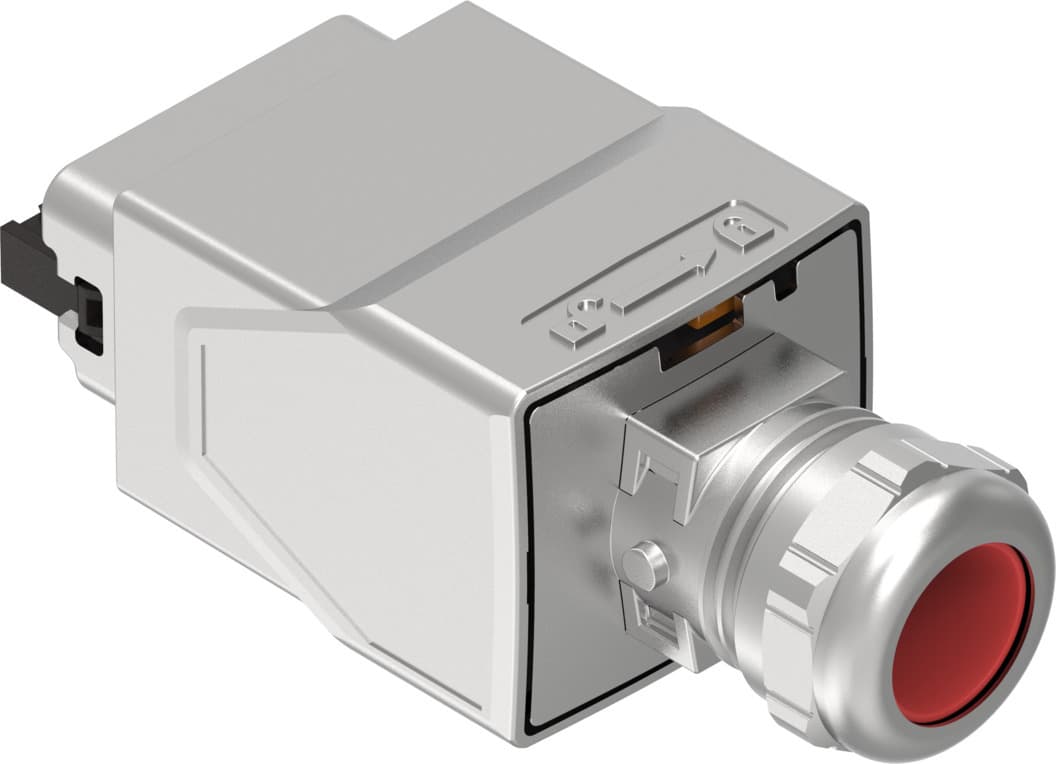

necu-m-ppg5pp-c1-pn
Product ID:8773
Updated: 2026/7/4
Key Features
- 1Ensure seamless PROFINET communication for reliable industrial automation.
- 2Withstand harsh environments with IP65 and IP67 protection ratings.
- 3Operate across a versatile 0 to 24 V DC voltage range.
- 4Support high-current demands with a 16 A capacity at 40°C.
- 5Resist corrosion with a durable die-cast zinc nickel-plated finish.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Protocol | PROFINET | Certification | c UL us - Recognized (OL) |
| Certificate issuing authority | UL E328433 | Additional functions | Meets AIDA requirements |
| Contact durability | 100 | Cable outlet | Straight |
| Product weight | 109g | Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket | Electrical connection 1, connection technology | Connection diagram PP, coding at pins 2 and 5 |
| Electrical connection 1, number of pins/wires | 5 | Electrical connection 1, occupied pins/wires | 5 |
| Electrical connection 1, type of mounting | Push-pull with interlock to prevent unintentional pulling | Electrical connection for input 1, connection pattern | 00995899 |
| Electrical connection 2, connection technology | Spring-loaded terminal | DC operating voltage range | 0V 24V |
| Current rating at 40° C | 16A | Surge resistance | 4kV |
| Cable fitting | Pg13.5, hexagon, AF 22 | Cable diameter | 9mm 13mm |
| Nominal conductor cross section | AWG18 - 13 | Degree of protection | IP65 IP67 |
| Note on degree of protection | In mounted state | Ambient temperature | -40°C 85°C |
| Storage temperature | -40°C 85°C | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Fire tested | UL94 V-0 |
| Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | Die-cast zinc, nickel-plated | Housing colour | Silver |
| Seals material | NBR TPE-V | Material of pin contacts | Copper alloy, nickel-plated and gold-plated |
| Manufacturer ID | 5195383 |
Specifications may be subject to change without notice
