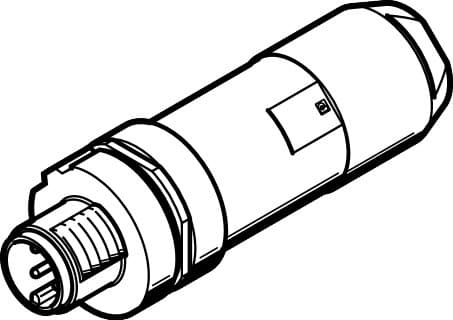

necu-m-s-a12g4-is
Product ID:14450
Updated: 2026/4/3
Key Features
- 1Achieve high surge resistance up to 0.8 kV for robust protection. 2、Operate across a wide voltage range from 0 to 30 V DC. 3、Ensure durability with a nickel-plated die-cast zinc housing. 4、Connect seamlessly with various cable lengths and insulation types. 5、Meet EN 61076-2-101 and EN 61984 standards for reliability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61076-2-101 | Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Mounting position | Any | Product weight | 38g |
| Electrical connection | 4-pin Spring-loaded terminal M12x1 Plug, straight | Plug coding | A |
| DC operating voltage range | 0V 30V | Current rating at 40° C | 4A |
| Approved cable diameter | 4mm 8mm | Connection cross section | 0.14mm2 0.5mm2 |
| Degree of protection | IP65 IP67 | Ambient temperature | -40°C 85°C |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Housing material | Die-cast zinc Nickel-plated | Material of pin contacts | Bronze Gold-plated |
| Manufacturer ID | 575719 |
Specifications may be subject to change without notice
