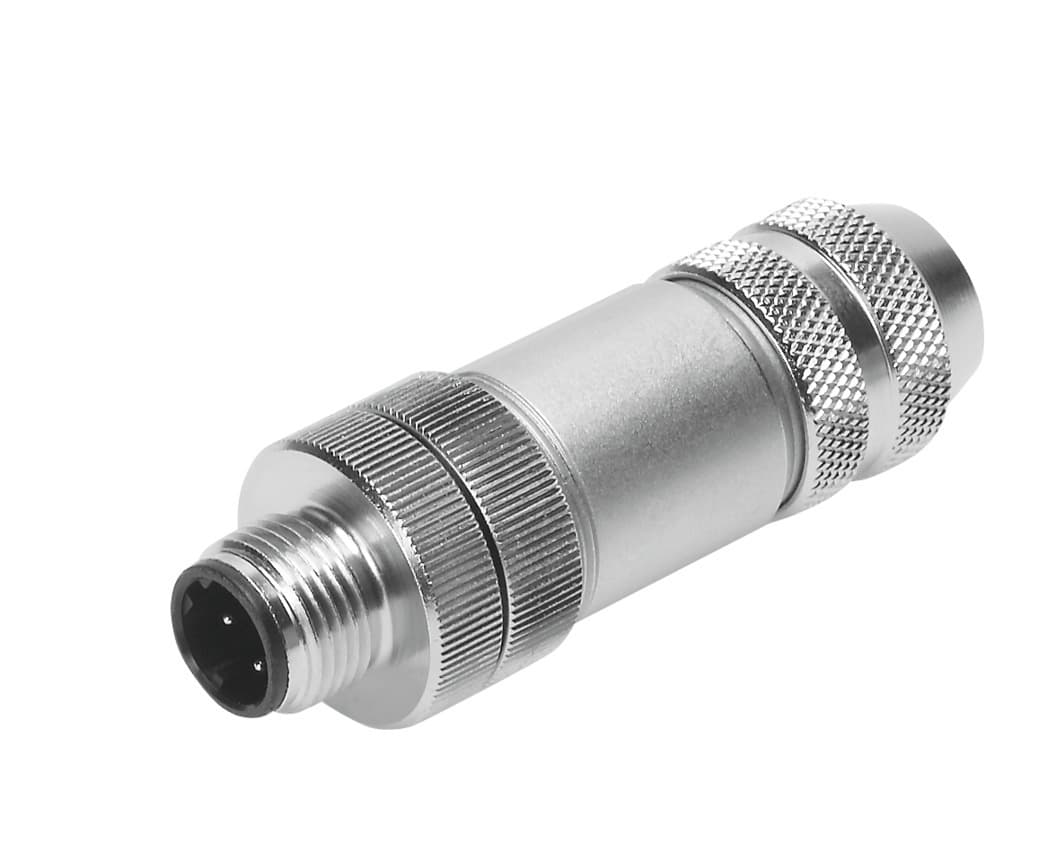

necu-m-s-d12g4-c2-et
Product ID:10876
Updated: 2026/7/4
Key Features
- 1Ensure secure connections with an M12x1, 4-pin, D-coded, screenable design.
- 2Operate across a wide DC/AC 0-250V range for versatile use.
- 3Protect equipment with robust 2.5 kV surge immunity.
- 4Meet international standards including EN 61076-2-101 and EN 61984.
- 5Deploy reliably in harsh conditions thanks to the IP67 protection rating.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61076-2-101 EN 61984 | Product weight | 44.3g |
| Electrical connection 1 | Straight plug, M12x1, 4-pin, D-coded, shieldable | Plug coding | D |
| Electrical connection 2 | Screw terminal, can be shielded | DC operating voltage range | 0V 250V |
| Operating voltage range AC | 0V 250V | Surge resistance | 2.5kV |
| Transmission characteristics | DIN EN 50173/CAT 5 | Approved cable diameter | 6mm 8mm |
| Connection cross section | 0.14mm2 0.75mm2 | Degree of protection | IP67 |
| Ambient temperature | -25°C 85°C | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Contamination level | 3 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | Housing material | Die-cast zinc, nickel-plated |
| Material of pin contacts | Brass, gold-plated | Manufacturer ID | 543109 |
Specifications may be subject to change without notice
