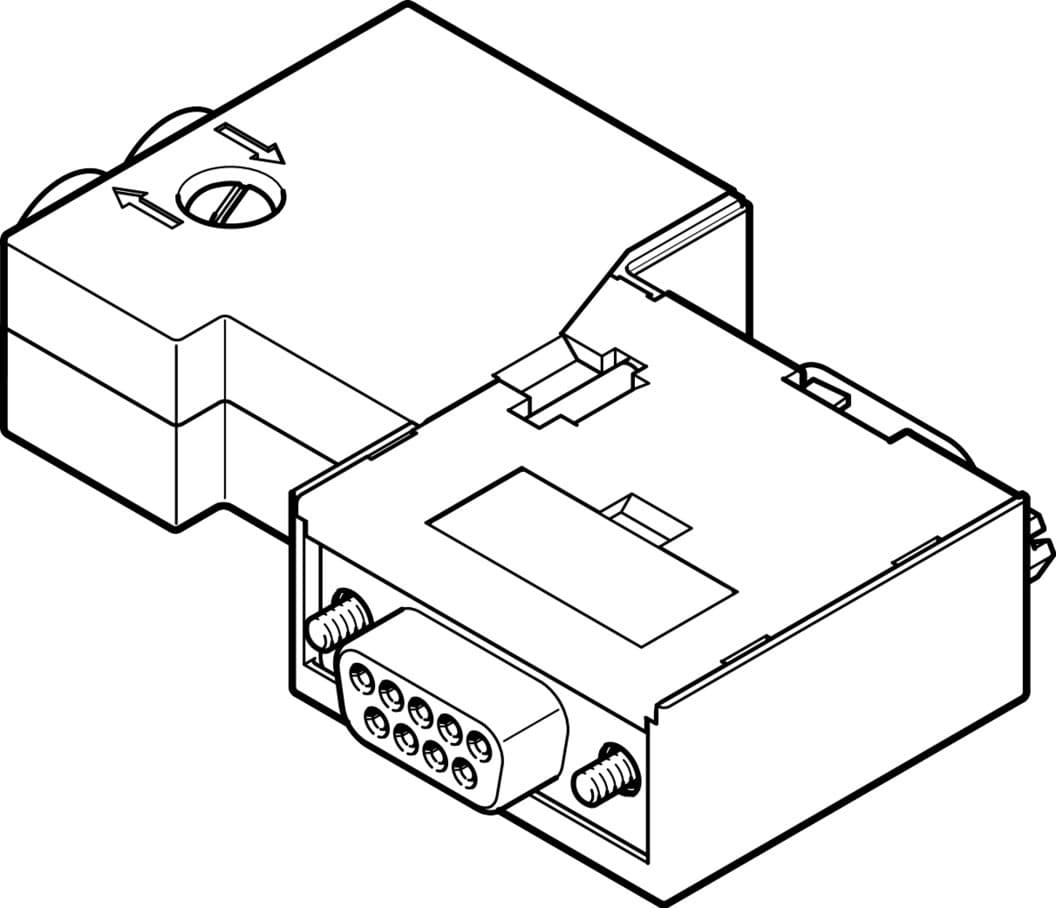

necu-s1w9-c2-aco
Product ID:14166
Updated: 2026/4/3
Key Features
- 1Secure versatile mounting with 4-40 UNC-2B. 2、Achieve high-speed communication at 1 Mbps baud rate. 3、Ensure robust operation with IP20 protection. 4、Connect easily via Sub-D, 9-pin interface. 5、Utilize durable PC-reinforced housing for longevity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of mounting | 4-40 UNC-2B | Product weight | 59g |
| Fieldbus interface | Sub-D, 9-pin, socket | Electrical connection 1 | Socket, Sub-D, 9-pin |
| Electrical connection 2 | Screw terminal, can be shielded | Baud rate | 1 Mbit/s |
| Approved cable diameter | 8mm | Connection cross section | 0.14mm2 0.5mm2 |
| Degree of protection | IP20 | Ambient temperature | -20°C 70°C |
| Relative air humidity | 75 % at 25 °C | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | PC-reinforced | Manufacturer ID | 574588 |
Specifications may be subject to change without notice
