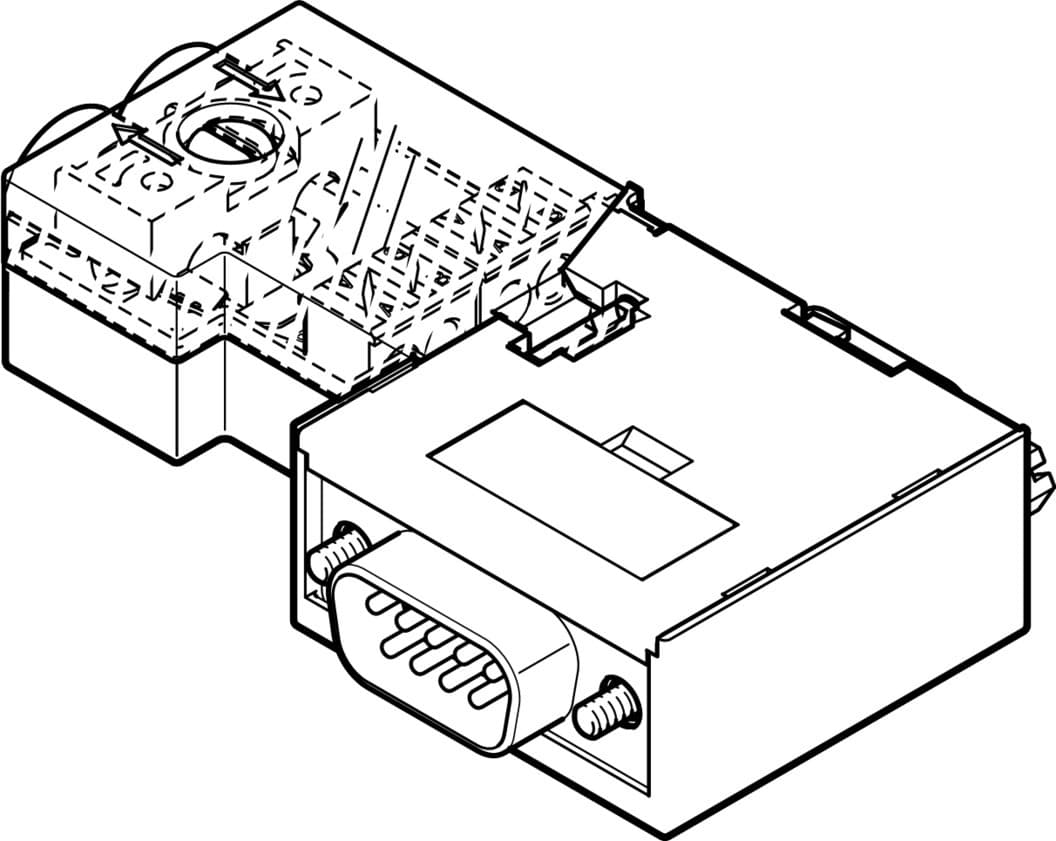

necu-s1w9-c2-apb
Product ID:14167
Updated: 2026/7/15
Key Features
- 1Ensure reliable communication with a robust Sub-D 9-pin fieldbus interface.
- 2Maximize durability with high CRC 1 corrosion resistance for low stress.
- 3Simplify integration using the compact 4-40 UNC-2B mounting type.
- 4Achieve fast data transfer supporting baud rates up to 12 Mbit/s.
- 5Meet industry standards with LABS (PWIS) and VDMA24364-B2-L conformity.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of mounting | 4-40 UNC-2B | Product weight | 57.48g |
| Fieldbus interface | Sub-D, 9-pin, socket | Electrical connection 1 | Sub-D plug, 9-pin |
| Electrical connection 2 | IDC terminal | Baud rate | 12 Mbit/s |
| Approved cable diameter | 8mm | Connection cross section | 0.08mm2 0.5mm2 |
| Degree of protection | IP20 | Ambient temperature | -20°C 70°C |
| Relative air humidity | 75 % at 25 °C | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | PC-reinforced | Manufacturer ID | 574589 |
Specifications may be subject to change without notice
