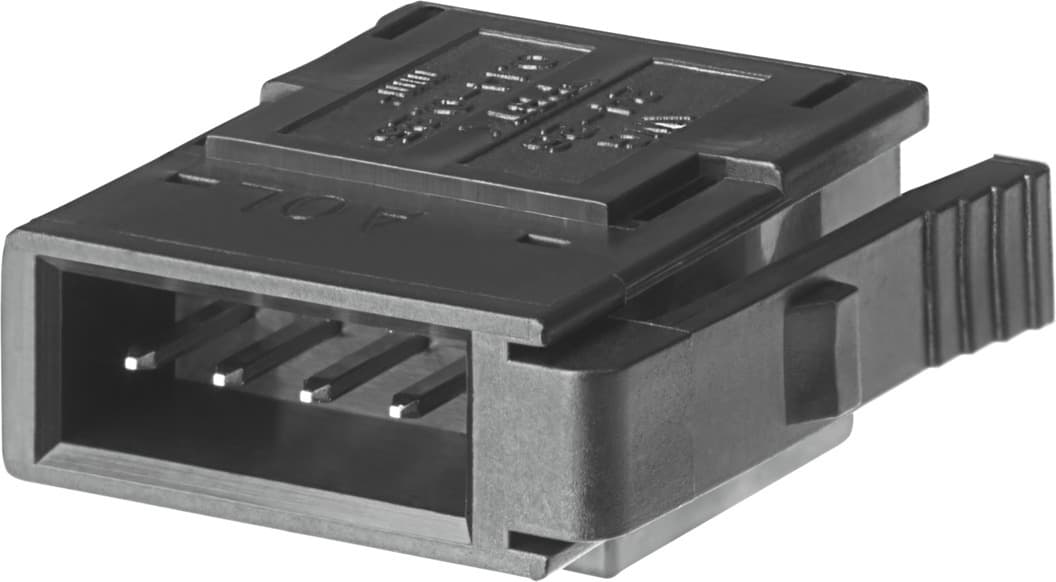

necu-s-ecg4-hx-q3
Product ID:13588
Updated: 2026/4/3
Key Features
- 1Integrate a 4-pin straight plug with a square design easily. 2、Ensure high reliability with c UL us recognition for safety. 3、Operate within a 0 to 30V DC range for various uses. 4、Construct with PBT and PC housing and gold-plated contacts. 5、Protect against solids with an IP40 rating for durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Certification | c UL us - Recognized (OL) | Contact durability | 1 |
| Type of mounting | Engaging | Electrical connection | 4-pin Straight plug/insulation displacement connector Rectangular design |
| DC operating voltage range | 0V 30V | Current rating at 40° C | 3A |
| Surge resistance | 0.8kV | Individual wire diameter | 0.07mm |
| Wire diameter | 0.8mm 1mm | Connection cross section | 0.14mm2 |
| Degree of protection | IP40 | Ambient temperature | -20°C 60°C |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Note on materials | RoHS-compliant |
| Contamination level | 2 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | PBT PC | Material of pin contacts | Gold-plated |
| Permissible insulating sheath | PP PVC TPE-E | Manufacturer ID | 570922 |
Specifications may be subject to change without notice
