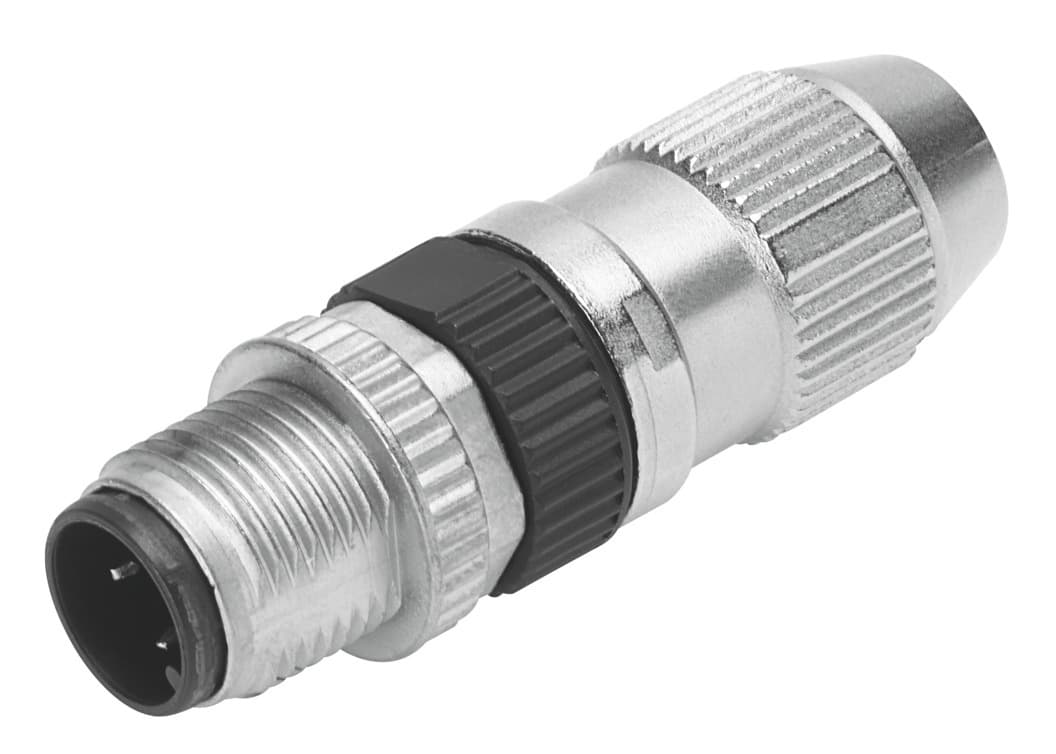

necu-s-m12g4-hx
Product ID:13050
Updated: 2026/7/4
Key Features
- 1Ensure reliable connections with high-quality M12 connectors.
- 2Protect against harsh environments with IP65 and IP67 ratings.
- 3Support versatile applications with a 0-48V AC operating range.
- 4Enhance conductivity and durability using gold-plated contacts.
- 5Guarantee industry compliance with EN 61076-2-101 and EN 61984 standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61076-2-101 EN 61984 | Certification | c UL us - Recognized (OL) |
| Contact durability | 3 | Product weight | 17.5g |
| Electrical connection | 4-pin A-coded M12x1 Straight plug/insulation displacement connector | DC operating voltage range | 0V 32V |
| Operating voltage range AC | 0V 32V | Current rating at 40° C | 4A |
| Surge resistance | 0.8kV | Approved cable diameter | 2.9mm 5.1mm |
| Individual wire diameter | 0.1mm | Wire diameter | 0.9mm 1.6mm |
| Connection cross section | 0.14mm2 0.34mm2 | Degree of protection | IP65 IP67 |
| Ambient temperature | -25°C 85°C | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Contamination level | 3 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | Housing material | PA Die-cast zinc Nickel-plated |
| Material of screw-type lock | Die-cast zinc, nickel-plated | Seals material | FPM PUR |
| Material of pin contacts | Gold-plated | Permissible insulating sheath | PP PVC TPE-E |
| Manufacturer ID | 562028 |
Specifications may be subject to change without notice
