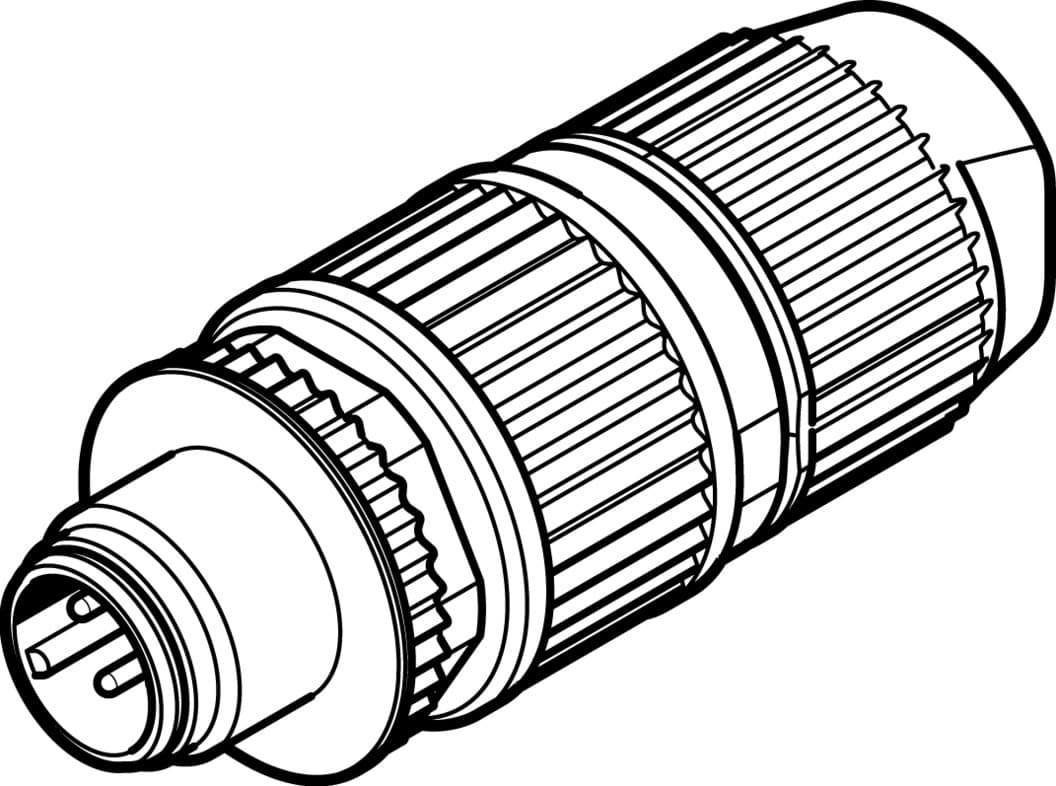

necu-s-m12g4-hx-q7
Product ID:13164
Updated: 2026/4/3
Key Features
- 1Enhance durability with a zinc die-cast and nickel-plated housing. 2、Ensure reliability and safety by meeting EN 61076-2-101 and EN 61984 standards. 3、Support up to 6 A current load at 40°C with 0.8 kV surge strength. 4、Deploy in harsh environments with IP65 and IP67 protection ratings. 5、Simplify wiring using the insulation displacement connection on this straight plug.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61076-2-101 EN 61984 | Certification | c UL us - Recognized (OL) |
| Contact durability | 3 | Product weight | 33.3g |
| Electrical connection | 4-pin A-coded M12x1 Straight plug/insulation displacement connector | DC operating voltage range | 0V 48V |
| Operating voltage range AC | 0V 48V | Current rating at 40° C | 6A |
| Surge resistance | 0.8kV | Approved cable diameter | 4.7mm 6mm |
| Individual wire diameter | 0.1mm | Wire diameter | 1.6mm 2mm |
| Connection cross section | 0.34mm2 0.75mm2 | Degree of protection | IP65 IP67 |
| Ambient temperature | -25°C 85°C | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Contamination level | 3 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | Housing material | PA Die-cast zinc Nickel-plated |
| Material of screw-type lock | Die-cast zinc, nickel-plated | Seals material | FPM PUR |
| Material of pin contacts | Gold-plated | Permissible insulating sheath | PVC |
| Manufacturer ID | 564947 |
Specifications may be subject to change without notice
