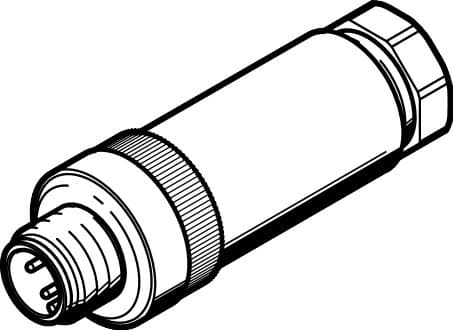

necu-s-m12g4-p2-is
Product ID:13590
Updated: 2026/4/3
Key Features
- 1Ensure reliable connections with a 4-pin M12x1 plug pattern. 2、Install in any assembly position for easy system integration. 3、Withstand 2.5 kV surges for excellent electrical protection. 4、Meet RoHS standards with a durable PA housing. 5、Operate from -25°C to 85°C in diverse industrial environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61076-2-101 EN 61984 | Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Contact durability | 50 | Mounting position | Any |
| Product weight | 18g | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round | Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, type of mounting | Screw-type lock with hexagon AF 18 and longitudinal knurl |
| Electrical connection for input 1, connection pattern | 00995386 | Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Screw terminal | DC operating voltage range | 0V 30V |
| Current rating at 40° C | 4A | Surge resistance | 2.5kV |
| Cable fitting | Pg9 | Approved cable diameter | 6mm 8mm |
| Connection cross section | 0.75mm2 | Degree of protection | IP65 IP67 |
| Ambient temperature | -25°C 85°C | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Contamination level | 3 |
| Housing material | PA | Material of union nut | PA |
| Material of pin contacts | Brass White bronze, coated | Manufacturer ID | 570954 |
Specifications may be subject to change without notice
