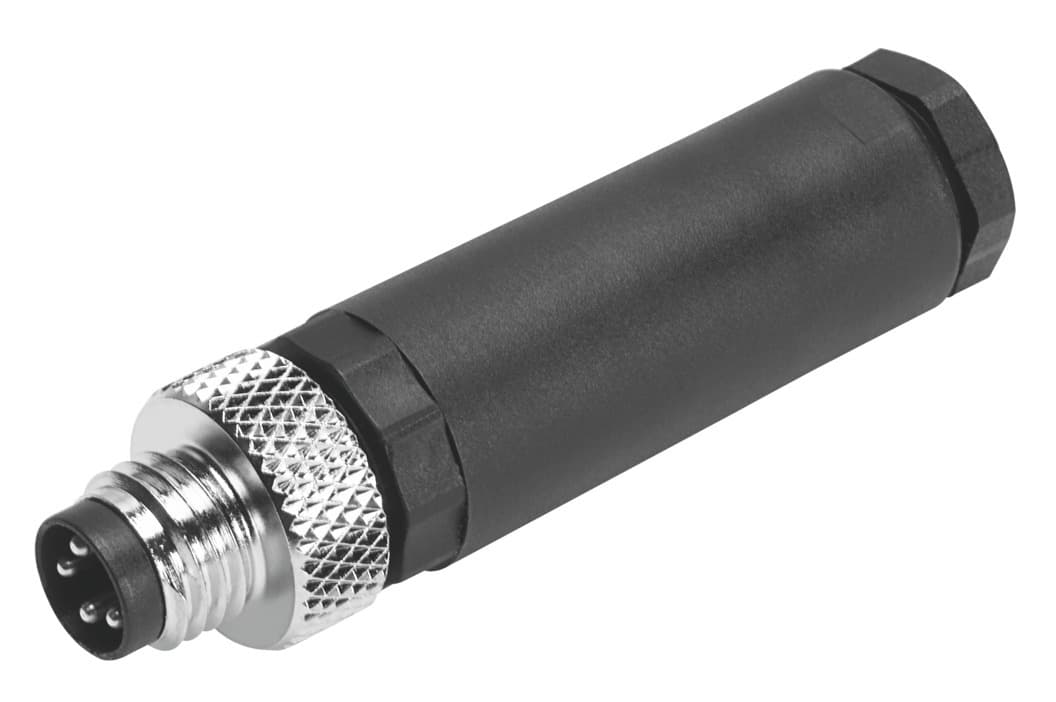

necu-s-m8g4-c2
Product ID:708
Updated: 2026/7/4
Key Features
- 1Conform to EN 61076-2-104 with M8x1 A-coded connection for wide compatibility.
- 2Secure mounting via screw-type lock with AF9 for versatile cable assembly.
- 3Ensure reliable performance with 0.8 kV surge resistance and 0-30 V range.
- 4Handle up to 4 A current at 40°C for industrial automation.
- 5Construct with PA housing and gold-plated contacts for durability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | EN 61076-2-104 | Contact durability | 100 |
| Cable outlet | Straight | Product weight | 9.1g |
| Electrical connection 1, design | Round | Electrical connection 1, connection type | Plug |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 1, number of pins/wires | 4 |
| Electrical connection 1, type of mounting | Screw-type lock with AF 9 | Electrical connection for input 1, connection pattern | 00991171 |
| Electrical connection 2, connection technology | Screw terminal | DC operating voltage range | 0V 30V |
| Operating voltage range AC | 0V 30V | Current rating at 40° C | 4A |
| Surge resistance | 0.8kV | Cable diameter | 3.5mm 5mm |
| Nominal conductor cross section | 0.14mm2 0.5mm2 | Degree of protection | IP67 |
| Note on degree of protection | In mounted state | Ambient temperature | -25°C 85°C |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | PA | Housing colour | Black |
| Material of screw-type lock | Brass, nickel-plated | Material of pin contacts | Brass, gold-plated |
| Manufacturer ID | 1068198 |
Specifications may be subject to change without notice
