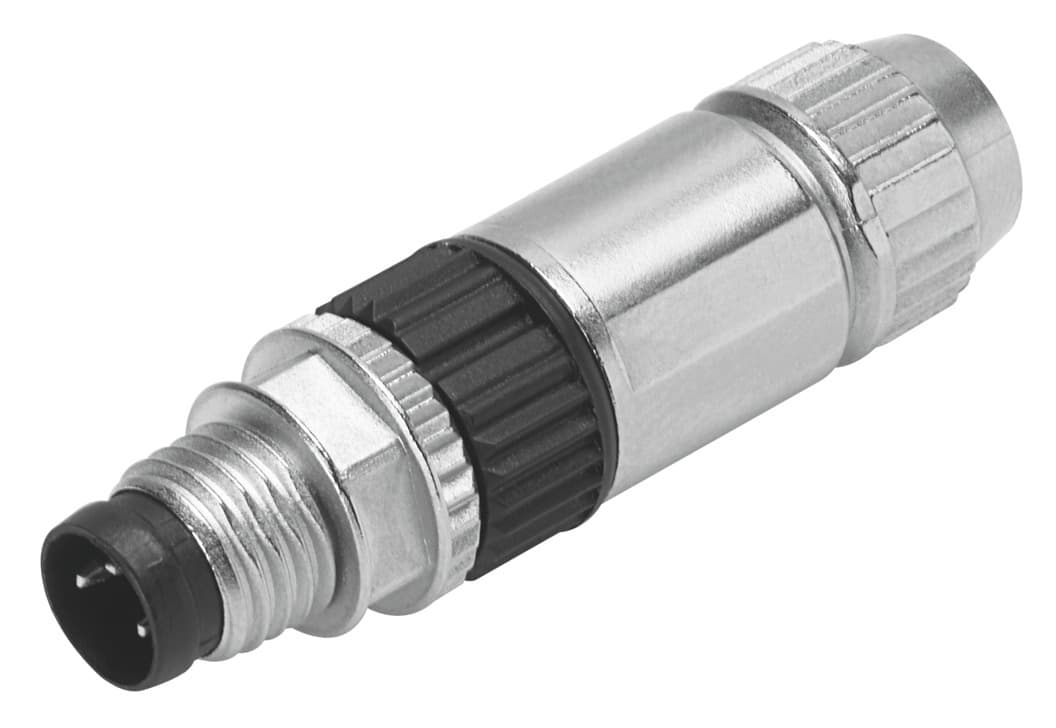

necu-s-m8g4-hx
Product ID:13048
Updated: 2026/4/3
Key Features
- 1Ensure reliable operation with 0.8 kV surge immunity in demanding conditions. 2、Gain durability from a nickel-plated die-cast zinc housing with PUR/FPM seals. 3、Operate flexibly from 0 V to 32 V DC/AC for various applications. 4、Integrate easily using the M8x1 straight plug with 4-pin connection. 5、Deploy in diverse environments from -25°C to 85°C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61076-2-104 EN 61984 | Certification | c UL us - Recognized (OL) |
| Contact durability | 3 | Product weight | 7.8g |
| Electrical connection | 4-pin M8x1 Straight plug/insulation displacement connector | DC operating voltage range | 0V 32V |
| Operating voltage range AC | 0V 32V | Current rating at 40° C | 4A |
| Surge resistance | 0.8kV | Approved cable diameter | 2.5mm 5.1mm |
| Individual wire diameter | 0.1mm | Wire diameter | 0.9mm 1.6mm |
| Connection cross section | 0.14mm2 0.34mm2 | Degree of protection | IP65 IP67 |
| Ambient temperature | -25°C 85°C | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Contamination level | 3 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | Housing material | PA Die-cast zinc Nickel-plated |
| Material of screw-type lock | Brass, nickel-plated | Seals material | FPM PUR |
| Material of pin contacts | Gold-plated | Permissible insulating sheath | PP PVC TPE-E |
| Manufacturer ID | 562025 |
Specifications may be subject to change without notice
