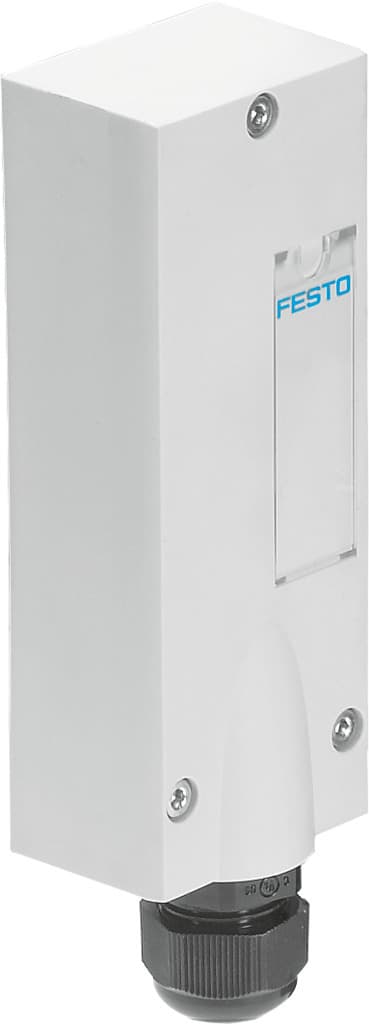

necv-s1w37
Product ID:11065
Updated: 2026/4/3
Key Features
- 1Install easily with an angular, space-saving design. 2、Ensure secure connections via a 37-pin Sub-D interface. 3、Protect against dust and water with IP65 rating. 4、Operate reliably in temperatures from -5°C to 50°C. 5、Simplify in-house assembly without cables.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Area of application | Only for multi-pin connection of valve manifold VTSA/VTSA-F | Product weight | 180g |
| Electrical connection 1, function | Field device end | Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connection technology | Sub-D | Electrical connection 1, number of pins/wires | 37 |
| Electrical connection 1, occupied pins/wires | 37 | Electrical connection 1, type of mounting | 3x M4 screw |
| Electrical connection for input 1, connection pattern | 00995644 | Electrical connection 2, connection technology | Crimp contacts |
| DC operating voltage range | 0V 30V | Current rating at 40° C | 2A |
| Surge resistance | 1kV | Cable fitting | M20x1.5 |
| Cable diameter | 5mm 13mm | Nominal conductor cross section | 0.08mm2 0.5mm2 |
| Degree of protection | IP65 NEMA 4 | Note on degree of protection | In mounted state |
| Ambient temperature | -5°C 50°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Housing material | PA |
| Manufacturer ID | 545974 |
Specifications may be subject to change without notice
