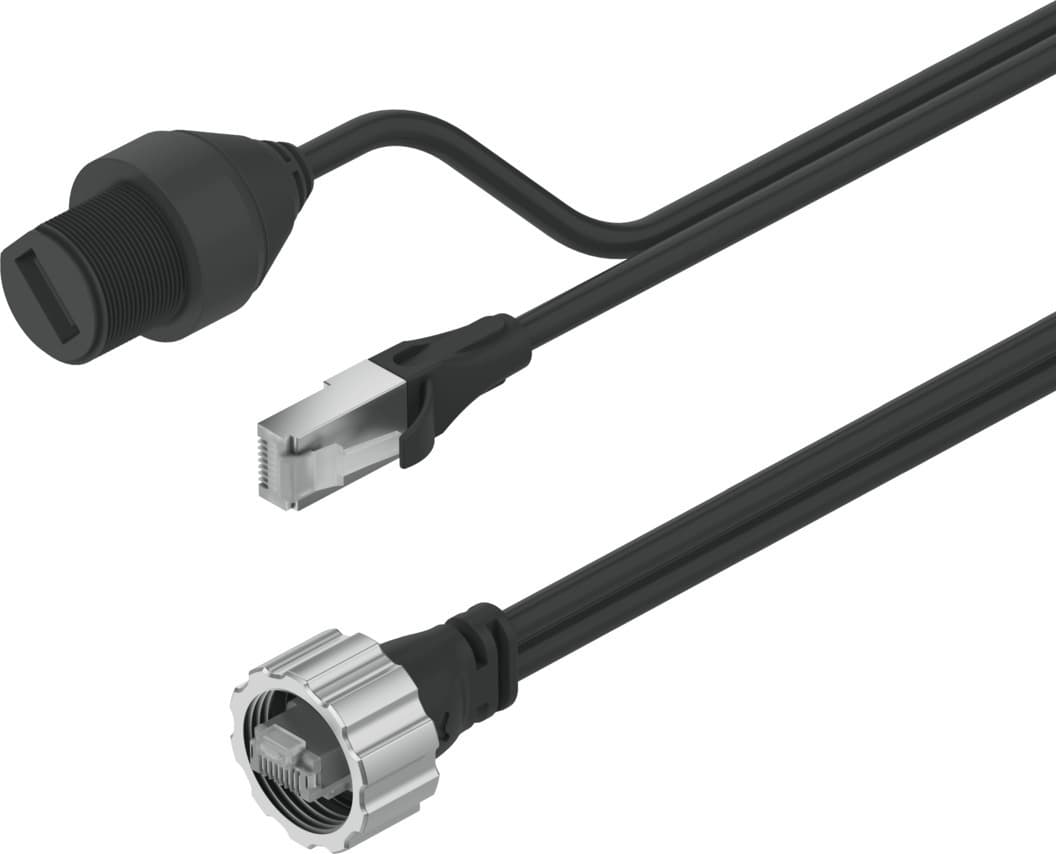

nedu-l1r2-r3l1g12m22-5l1-1l2-p-n-r3u1g12
Product ID:407
Updated: 2026/4/3
Key Features
- 1Ensure reliable communication and power with a Y-distributor design. 2、Adhere to EN 61076-2-101 via M12 A-coded connections. 3、Protect against harsh conditions with IP68/IP69K-rated TPE-U/PVC housing. 4、Support versatile 0-30V DC industrial applications. 5、Meet strict RoHS and CRC 1 environmental standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | IEC 60603-7-3 | Certification | RCM compliance mark c UL us - Listed (OL) |
| Certificate issuing authority | UL E239998 | Cable designation | Without label holder |
| Product weight | 520g | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Circuit board connector RJ45 |
| Electrical connection 1, number of pins/wires | 12 | Electrical connection 1, occupied pins/wires | 12 |
| Electrical connection 1, type of mounting | Screw-type lock | Electrical connection 2, function | Control side |
| Electrical connection 2, design | Rectangular | Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | RJ45 |
| Electrical connection 2, number of pins/wires | 8 | Electrical connection 2, occupied pins/wires | 8 |
| Electrical connection 2, type of mounting | Snap-locking | Electrical connection 2, connection pattern | 00995653 |
| Electrical connection 3, function | Control side | Electrical connection 3, design | Rectangular |
| Electrical connection 3, connection type | Socket | Electrical connection 3, cable outlet | Straight |
| Electrical connection 3, connection technology | USB 2.0 type B | Electrical connection 3, number of pins/wires | 4 |
| Electrical connection 3, occupied pins/wires | 4 | DC operating voltage range | 0V 60V |
| Current rating at 40° C | 1A | Shield | yes |
| Transmission characteristics | In accordance with category 5, EN 50173, class D According to category 5, ISO/IEC 11801, class D | Cable length 1 | 5m |
| Cable length 2 | 1m | Cable characteristic | for static applications |
| Bending radius, fixed cable installation | 30mm | Cable diameter 1 | 5.6mm |
| Cable diameter tolerance 1 | ± 0.2 mm | Cable diameter 2 | 4.5mm |
| Cable diameter 2 tolerance | ± 0.2 mm | Degree of protection | IP20 IP66 IP67 |
| Note on degree of protection | In mounted state | Ambient temperature | -20°C 55°C |
| Storage temperature | -20°C 70°C | Relative air humidity | 5 - 85 % Non-condensing |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress (when installed) | Material of cable sheath | PVC |
| Color cable sheath | Black | Housing material | PC |
| Housing colour | Transparent | Material of screw-type lock | High-alloy stainless steel |
| Seals material | TPE-V | Material of pin contacts | Brass, nickel-plated and gold-plated |
| Insulating sheath material | PVC | Manufacturer ID | 8155230 |
Specifications may be subject to change without notice
