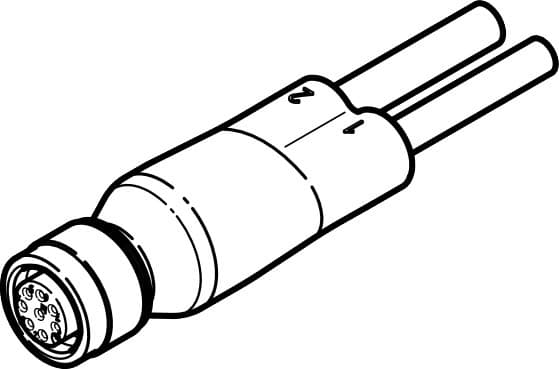

nedu-l1r2-v9-m12g8-e-le5-5r1-le3-5r2
Product ID:8035
Updated: 2026/4/3
Key Features
- 1Utilize IO-Link technology for simplified sensor communication. 2、Ensure reliability with 0.8 kV surge resistance. 3、Connect devices via M12 socket and plug connectors. 4、Deploy in static applications with durable 4.5mm cable. 5、Operate within a 0-30V DC range for control systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61076-2-101 | Structural design | Y-distributor with cable on field device/controller side |
| Distributor type | 1 to 2 | Additional functions | Connection of sensor and controller to proportional pressure control valve |
| Cable designation | Without label holder | Product weight | 377g |
| Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 1, number of pins/wires | 8 |
| Electrical connection 1, occupied pins/wires | 6 | Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00992265 | Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 5 | Electrical connection 2, occupied pins/wires | 5 |
| Electrical connection 3, function | Field device end | Electrical connection 3, connection type | Cable |
| Electrical connection 3, connection technology | Open end | Electrical connection 3, number of pins/wires | 3 |
| Electrical connection 3, occupied pins/wires | 3 | DC operating voltage range | 0V 30V |
| Operating voltage range AC | 0V 30V | Current rating at 40° C | 2A |
| Surge resistance | 0.8kV | Shield | yes |
| Cable length 1 | 5m | Cable length 2 | 5m |
| Cable diameter 1 | 5.3mm | Cable diameter 2 | 4.5mm |
| Cable design | 3 x 0.25 mm2 5 x 0.25 mm2 | Nominal conductor cross section | 0.25mm2 |
| Degree of protection | IP65 IP67 | Note on degree of protection | In mounted state |
| Ambient temperature | -25°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Black |
| Housing material | TPE-U(PUR) | Housing colour | Black |
| Material of screw-type lock | Brass, nickel-plated | Seals material | FPM |
| Material of pin contacts | Brass, gold-plated | Insulating sheath material | PVC |
| Manufacturer ID | 2903567 |
Specifications may be subject to change without notice
