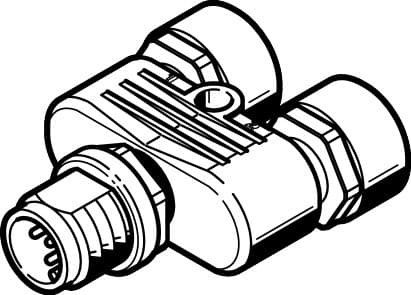

nedu-l2r1-v10-m12g5-m12g5
Product ID:8031
Updated: 2026/4/3
Key Features
- 1Secure reliable electrical connections with screw-in mounting and A-coded 5-pin sockets. 2、Operate within a versatile 0 to 30 V DC voltage range for various applications. 3、Ensure equipment longevity with 1.5 kV surge strength protection. 4、Resist corrosion using TPE-U(PUR) housing and nickel-plated zinc nuts. 5、Deploy confidently in harsh environments with dust and water protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61076-2-101 | Type of mounting | Screw-in |
| Product weight | 25g | Electrical connection 1 | Straight socket, M12x1, 5-pin, A-coded |
| Electrical connection 2 | Straight socket, M12, 5-pin, A-coded | Electrical connection 3 | Straight plug, M12, 5-pin, A-coded |
| DC operating voltage range | 0V 30V | Current rating at 40° C | 4A |
| Surge resistance | 1.5kV | Degree of protection | IP65 IP67 |
| Ambient temperature | -25°C 85°C | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Housing material | TPE-U(PUR) |
| Housing colour | Black | Material of union nut | Die-cast zinc Nickel-plated |
| Seals material | FPM | Material of pin contacts | Copper alloy Gold-plated |
| Manufacturer ID | 2839867 |
Specifications may be subject to change without notice
