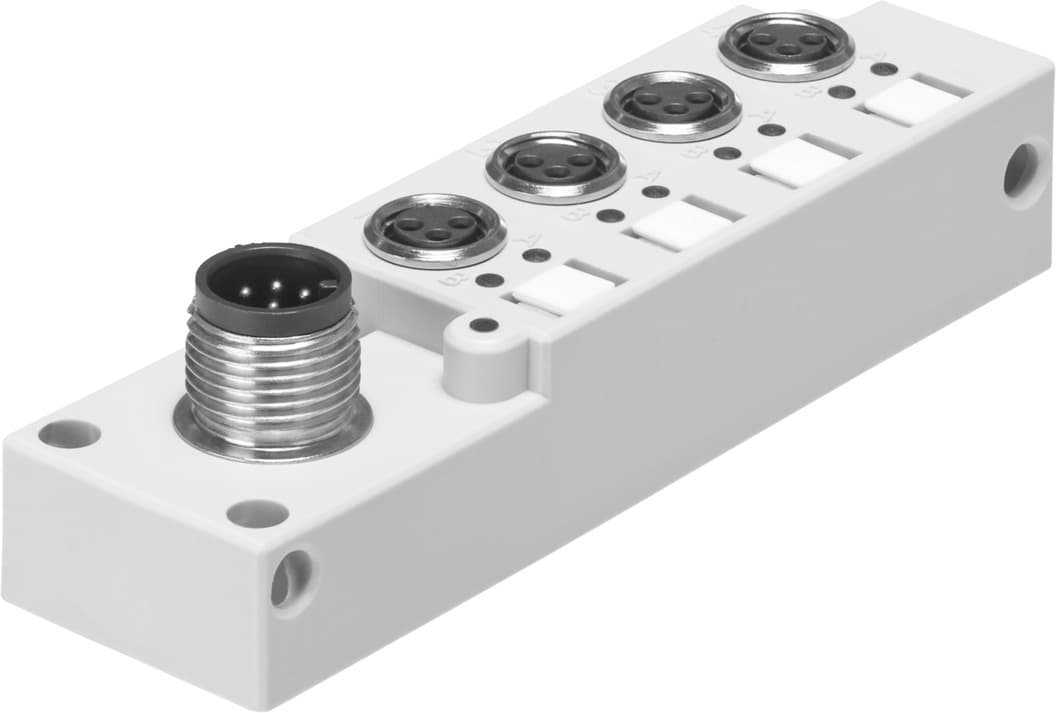

nedu-l4r1-m8g3l-m12g8
Product ID:14164
Updated: 2026/4/3
Key Features
- 1Ensure reliable connections with M8 and M12 interfaces. 2、Achieve IP68 protection against dust and water ingress. 3、Operate across a wide 10V to 30V DC voltage range. 4、Resist corrosion with PBT housing and nickel-plated contacts. 5、Mount flexibly in any position for versatile installation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 24 mm | Height | 23 mm |
| Length | 87 mm | Ready status indication | LED green |
| Status indicator | LED yellow | Mounting position | Any |
| Product weight | 58g | Electrical connection 1 | Straight socket, M8, 3-pin |
| Electrical connection 2 | Straight plug, M12x1, 8-pin | DC operating voltage range | 10V 30V |
| Current rating at 40° C | 3A | Acceptable current load per slot | 2A |
| Degree of protection | IP68 | Ambient temperature | -20°C 80°C |
| LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 3 - High corrosion stress | Housing material | PBT-reinforced |
| Housing colour | Gray | Seals material | FPM |
| Material of pin contacts | Nickel-plated and gold-plated | Socket material | Brass, nickel-plated |
| Manufacturer ID | 574586 |
Specifications may be subject to change without notice
