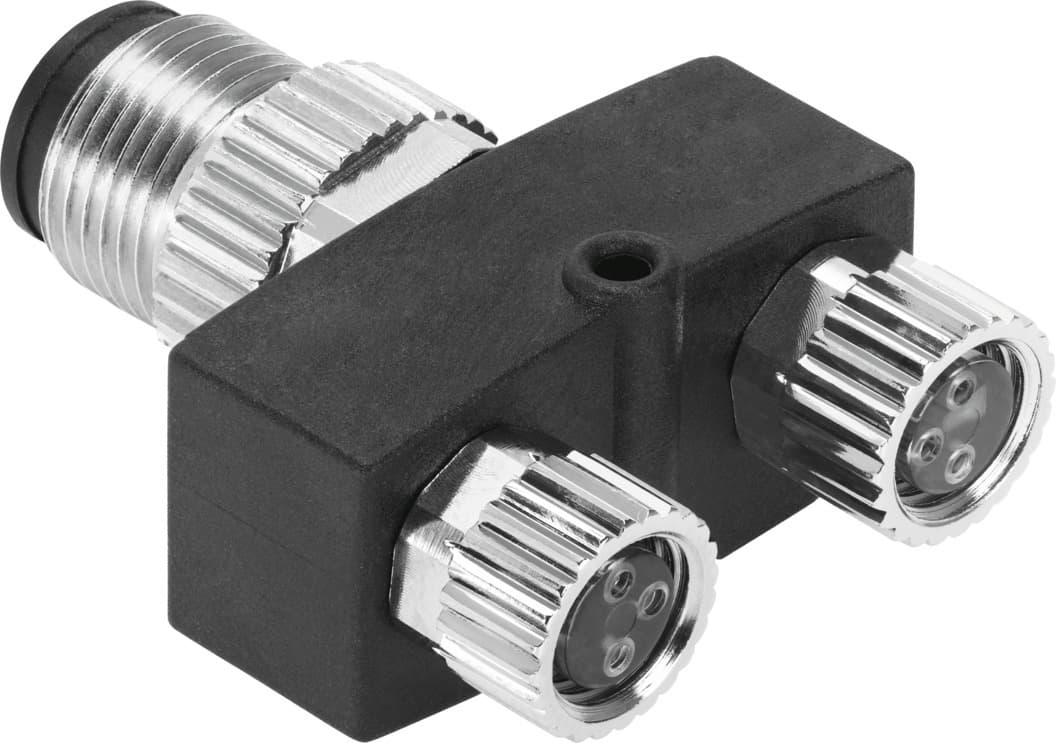

nedy-
Product ID:15474
Updated: 2026/7/15
Key Features
- 1Ensure reliable signal distribution compliant with EN 61076-2-104 standards.
- 2Utilize the Y-distributor design for efficient dual-side cable connectivity.
- 3Protect against dust and water with a durable IP65 enclosure.
- 4Enhance automation efficiency in energy chains and robot applications.
- 5Save with free shipping on orders over $1,000 and lifetime support.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Certification | RCM compliance mark | Explosion prevention and protection | Observe the information on the certificate Zone 2 (ATEX) Zone 22 (ATEX) |
| Distributor type | 2 to 1 | Ready status indication | LED green |
| Switching status indication | LED yellow | Signal status display | LED yellow |
| Additional functions | Holding current reduction | Cable designation | With label holder Without label holder |
| Type of mounting | With through-hole for M2 screw With accessories | Electrical connection 1, function | Control side |
| Electrical connection 1, connection type | Cable Plug | Electrical connection 1, cable outlet | Straight Angled |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 M8x1 A-coded as per EN 61076-2-104 Open end | Electrical connection 1, number of pins/wires | 3 |
| Electrical connection 2, function | Field device end | Electrical connection 2, connection type | 2x socket 2x cables |
| Electrical connection 2, cable outlet | Straight Angled Rotatable | Electrical connection 2, connection technology | Connection diagram ZB, self-tapping screw Connection diagram ZC, self-tapping screw Connection diagram ZC, metric screw Connection diagram H Connection diagram form A as per EN 175301-803 Connection diagram form B as per EN 175301-803 Connection diagram form B as per industrial standard, 11 mm Connection diagram type C as per EN 175301-803 Connection diagram form C as per industrial standard, 9.4 mm M12x1 A-coded as per EN 61076-2-101 M8x1 A-coded as per EN 61076-2-104 Open end |
| Electrical connection 2, number of pins/wires | 4 | DC operating voltage range | 0V 30V |
| Operating voltage range AC | 0V 30V | Current rating at 40° C | 0.5A 4A |
| Surge resistance | 0.8kV | Cable length 1 | 0.3m 30m |
| Cable length 2 | 0.3m 30m | Cable characteristic | Suitable for energy chains/robot applications |
| Nominal conductor cross section | 0.25mm2 | Ambient temperature | -25°C 85°C |
| Note on ambient temperature | -10 - 40 °C when mounted via through-hole | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant Halogen-free Free of phosphoric acid ester | Contamination level | 3 |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
| Housing material | PA PC TPE-U(PUR) | Housing colour | Black |
| Manufacturer ID | 8032867 |
Specifications may be subject to change without notice
