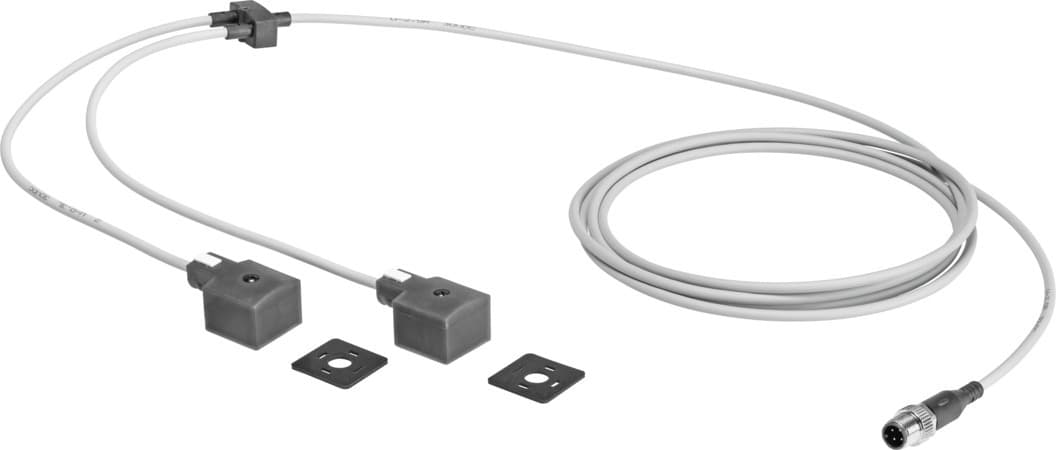

nedy-l2r1-v1-a1w4l-u-0.3l-m12g4-2.5r
Product ID:15846
Updated: 2026/4/3
Key Features
- 1Ensure reliable signal distribution compliant with EN 175301-803 and EN 61076-2-101 standards. 2、Optimize signal routing using the efficient Y-distributor design with cables on both sides. 3、Monitor signal conditions easily with the integrated yellow LED status display. 4、Deploy in energy chains and robots thanks to high torsional resistance and bending strength. 5、Withstand harsh environments with IP65 and IP67 protection ratings.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 175301-803 EN 61076-2-101 | Structural design | Y-distributor with cables at both ends |
| Distributor type | 2 to 1 | Signal status display | LED yellow |
| Cable designation | With label holder | Type of mounting | With through-hole for M2 screw With accessories |
| Product weight | 123g | Electrical connection 1, function | Control side |
| Electrical connection 1, design | Round | Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 3 |
| Electrical connection for input 1, connection pattern | 00995635 | Electrical connection 2, function | Field device end |
| Electrical connection 2, design | Rectangular | Electrical connection 2, connection type | 2x socket |
| Electrical connection 2, cable outlet | Angled | Electrical connection 2, connection technology | Connection diagram form A as per EN 175301-803 |
| Electrical connection 2, number of pins/wires | 4 | Electrical connection 2, occupied pins/wires | 2 |
| Electrical connection 2, connection pattern | 00995629 | DC operating voltage range | 20.4V 27.6V |
| Current rating at 40° C | 4A | Surge resistance | 0.8kV |
| Cable length 1 | 2.5m | Cable length 2 | 0.3m |
| Cable characteristic | Suitable for energy chains/robot applications | Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm |
| Bending radius 1, flexible cable installation | 39mm | Bending radius 2, flexible cable installation | 39mm |
| Cable diameter 1 | 3.8mm | Cable diameter 2 | 3.8mm |
| Nominal conductor cross section | 0.25mm2 | Degree of protection | IP65 IP67 |
| Ambient temperature | -20°C 80°C | Note on ambient temperature | -10 - 40 °C when mounted via through-hole |
| Ambient temperature with flexible cable installation | -20°C 80°C | Storage temperature | -20°C 80°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant Halogen-free Free of phosphoric acid ester |
| Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
| Housing material | PA PC TPE-U(PUR) | Housing colour | Black |
| Seals material | NBR | Material of pin contacts | Copper alloy, gold-plated Copper alloy, silver-plated |
| Threaded sleeve material | Brass, nickel-plated | Manufacturer ID | 8035791 |
