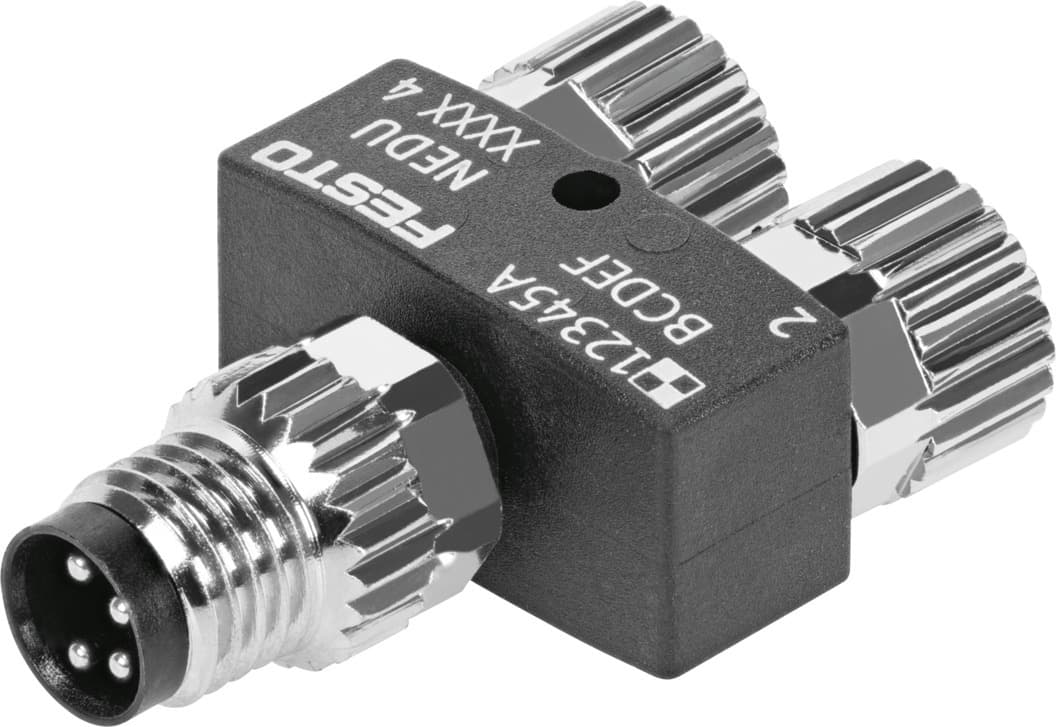

nedy-l2r1-v1-m8g3-n-m8g4
Product ID:14996
Updated: 2026/7/15
Key Features
- 1Meet ATEX Zone 2/22 standards for explosion protection.
- 2Ensure reliability with a robust, cable-free Y-distributor design.
- 3Utilize high-quality TPE-U(PUR) sheath, PC housing, and nickel-plated brass.
- 4Operate across a wide 0-30V DC/AC range with up to 3A current.
- 5Secure connections with durable M8x1 A-coded connectors.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61076-2-104 | Explosion prevention and protection | Observe the information on the certificate Zone 2 (ATEX) Zone 22 (ATEX) |
| Structural design | Y-distributor without cable | Distributor type | 2 to 1 |
| Cable designation | Without label holder | Type of mounting | With through-hole for M2 screw With accessories |
| Product weight | 10.5g | Electrical connection 1, function | Control side |
| Electrical connection 1, design | Round | Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 4 |
| Electrical connection for input 1, connection pattern | 00991171 | Electrical connection 2, function | Field device end |
| Electrical connection 2, design | Round | Electrical connection 2, connection type | 2x socket |
| Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 2, number of pins/wires | 3 | Electrical connection 2, occupied pins/wires | 3 |
| Electrical connection 2, connection pattern | 00991871 | DC operating voltage range | 0V 30V |
| Operating voltage range AC | 0V 30V | Current rating at 40° C | 3A |
| Surge resistance | 0.8kV | Degree of protection | IP65 IP68 IP69K |
| Ambient temperature | -25°C 85°C | Note on ambient temperature | -10 - 40 °C when mounted via through-hole |
| Storage temperature | -25°C 85°C | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant Halogen-free Free of phosphoric acid ester | Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray | Housing material | PC TPE-U(PUR) |
| Housing colour | Black | Material of union nut | Brass, nickel-plated |
| Seals material | NBR | Material of pin contacts | Copper alloy, gold-plated |
| Threaded sleeve material | Brass, nickel-plated | Manufacturer ID | 8005312 |
Specifications may be subject to change without notice
