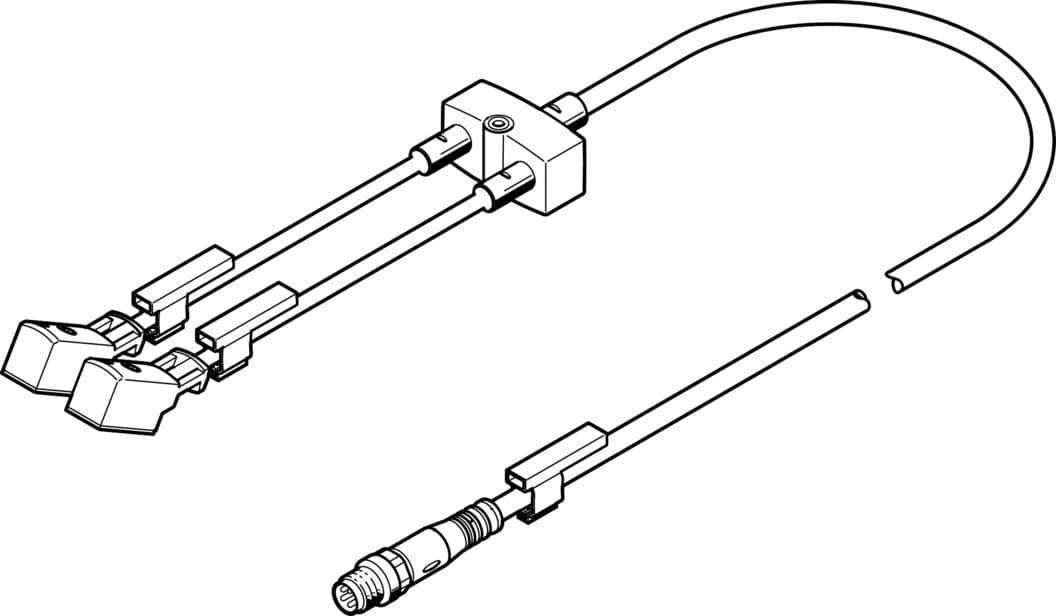

nedy-l2r1-v1-z4w2z-u-0.3l-m8g4-2.5r
Product ID:15844
Updated: 2026/7/15
Key Features
- 1Comply with EN 61076-2-104 international signal standards.
- 2Meet RCM trademark approval for market access.
- 3Utilize a Y-distributor design with dual-side cables.
- 4Monitor real-time signal status via LED display.
- 5Reduce holding current for efficient energy management.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61076-2-104 | Certification | RCM compliance mark |
| Structural design | Y-distributor with cables at both ends | Distributor type | 2 to 1 |
| Signal status display | LED yellow | Additional functions | Holding current reduction |
| Cable designation | With label holder | Type of mounting | With through-hole for M2 screw With accessories |
| Product weight | 82g | Electrical connection 1, function | Control side |
| Electrical connection 1, design | Round | Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 3 |
| Electrical connection for input 1, connection pattern | 00995633 | Electrical connection 2, function | Field device end |
| Electrical connection 2, design | Rectangular | Electrical connection 2, connection type | 2x socket |
| Electrical connection 2, cable outlet | Angled | Electrical connection 2, connection technology | Connection diagram ZC, metric screw |
| Electrical connection 2, number of pins/wires | 2 | Electrical connection 2, occupied pins/wires | 2 |
| Electrical connection 2, connection pattern | 00995625 | DC operating voltage range | 20.4V 27.6V |
| Current rating at 40° C | 1A | Surge resistance | 0.8kV |
| Cable length 1 | 2.5m | Cable length 2 | 0.3m |
| Cable characteristic | Suitable for energy chains/robot applications | Information on cable characteristics | Standard for field device side |
| Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm | Note on connector cable test conditions | For standard cable characteristics: energy chain: 1.5 million cycles, bending radius 75 mm, flexural strength: as per Festo standard, test conditions on request |
| Bending radius 1, flexible cable installation | 39mm | Bending radius 2, flexible cable installation | 30mm |
| Cable diameter 1 | 3.8mm | Cable diameter 2 | 2.9mm |
| Nominal conductor cross section | 0.25mm2 | Degree of protection | IP65 |
| Ambient temperature | -10°C 50°C | Note on ambient temperature | -10 - 40 °C when mounted via through-hole |
| Ambient temperature with flexible cable installation | -5°C 50°C | Storage temperature | -10°C 50°C |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
| Housing material | PA TPE-U(PUR) | Housing colour | Black |
| Seals material | NBR TPE-O | Material of pin contacts | Copper alloy, gold-plated Copper alloy, tin-plated |
| Threaded sleeve material | Brass, nickel-plated | Manufacturer ID | 8035789 |
Specifications may be subject to change without notice
