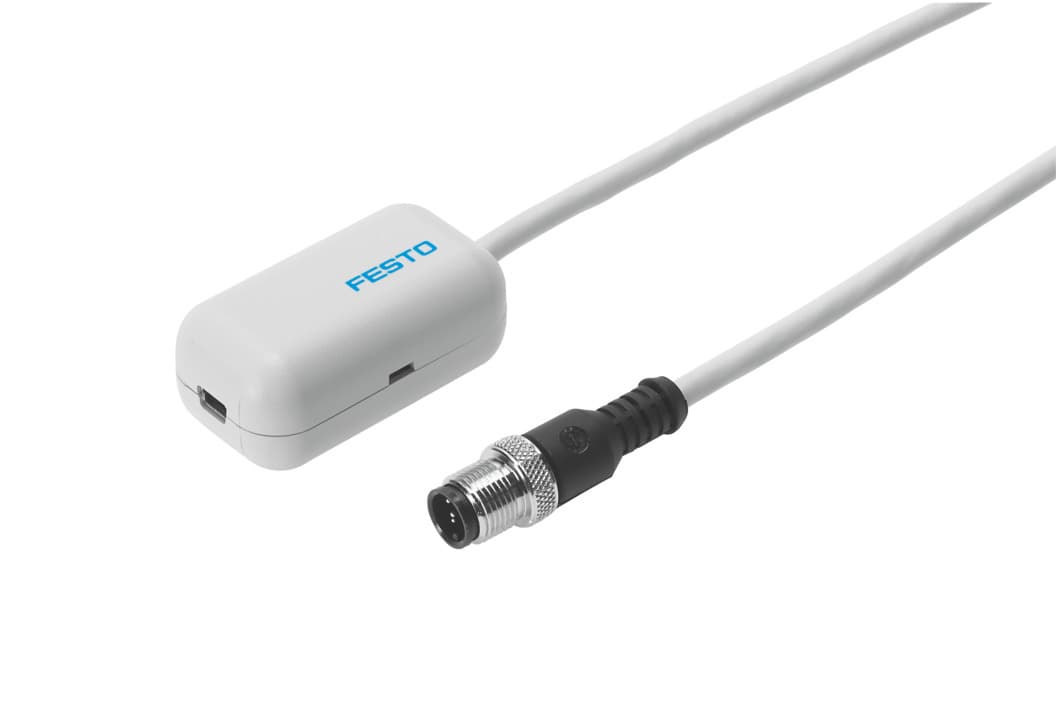

nefc-m12g5-0.3-u1g5
Product ID:11508
Updated: 2026/4/3
Key Features
- 1Ensure reliable 0.3m servo-pneumatic connections. 2、Feature a durable 5-pin M12 plug with PUR sheath. 3、Provide IP20 protection for industrial environments. 4、Utilize gold-plated brass contacts for corrosion resistance. 5、Meet RoHS and EU EMC directive standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of mounting | Screw-in | Electrical connection | 5-pin M12x1 Plug |
| Cable length | 0.3m | Cable design | 4 x 0.34 mm2 |
| Degree of protection | IP20 | Ambient temperature | -5°C 50°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | PUR |
| Housing material | ABS | Material of pin contacts | Brass, gold-plated |
| Manufacturer ID | 547432 |
Specifications may be subject to change without notice
