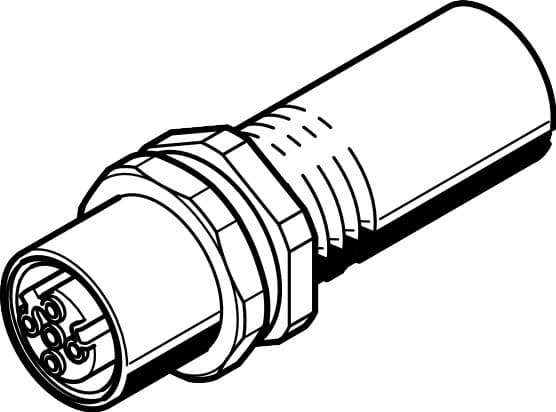

nefu-d12g4-d12dg4
Product ID:15940
Updated: 2026/7/15
Key Features
- 1Ensure durability with a brass, nickel-plated housing.
- 2Guarantee precise connections via M12, 4-pin, D-coded sockets.
- 3Meet EN 61076-2-101 and ISO/IEC 11801 standards.
- 4Operate flexibly within a 0-30V DC range.
- 5Withstand harsh conditions with IP65/67 protection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | EN 61076-2-101 | Type of mounting | Screwed tightly |
| Electrical connection 1 | Straight socket, M12x1, 4-pin, D-coded | Electrical connection 2 | Straight socket, M12x1, 4-pin, D-coded |
| DC operating voltage range | 0V 30V | Current rating at 40° C | 4A |
| Surge resistance | 0.8kV | Transmission characteristics | In accordance with category 5, EN 50173, class D According to category 5, ISO/IEC 11801, class D |
| Degree of protection | IP65 IP67 | Ambient temperature | -25°C 85°C |
| LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | Brass, nickel-plated | Housing colour | Silver |
| Material of pin contacts | Brass Gold-plated | Manufacturer ID | 8040459 |
Specifications may be subject to change without notice
