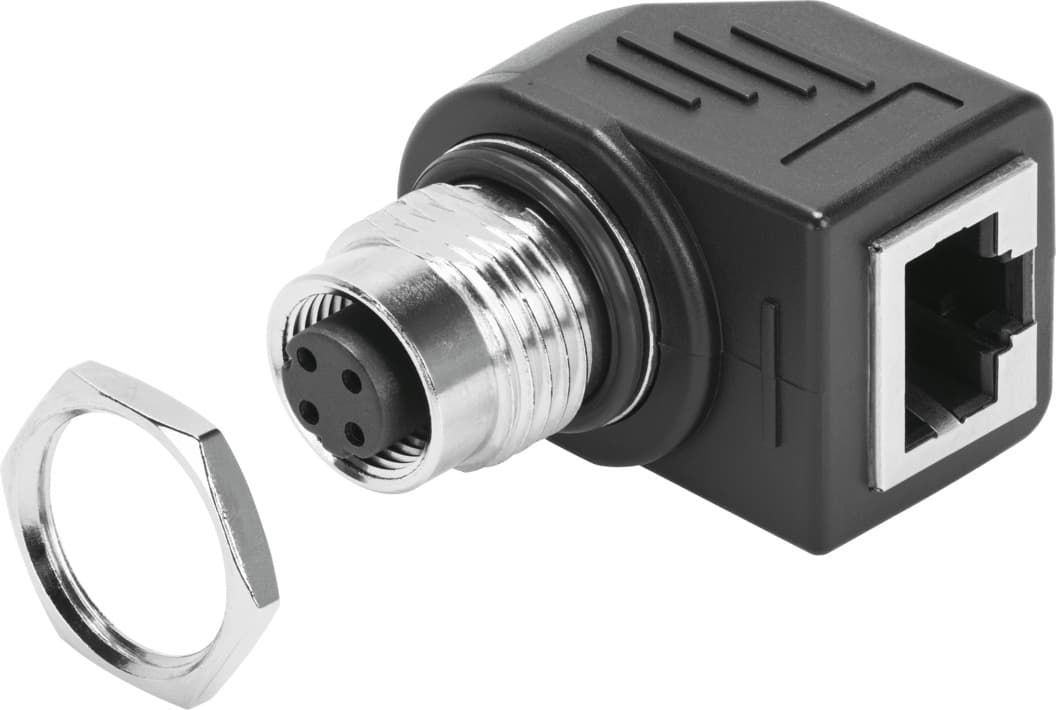

nefu-d12g4-r3dw4
Product ID:15939
Updated: 2026/7/15
Key Features
- 1Ensure durability with brass, nickel-plated brass, and die-cast zinc construction.
- 2Achieve reliable data transmission meeting Category 5 standards.
- 3Meet compliance with EN 61076-2-101 and IEC 60603-7-3 standards.
- 4Simplify installation using screw-clamped mounting for secure connections.
- 5Operate within a wide DC voltage range of 0 V to 30 V.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Length | 40.1 mm | Conforms to standard | EN 61076-2-101 IEC 60603-7-3 |
| Type of mounting | Screwed tightly | Electrical connection 1 | Straight socket, M12x1, 4-pin, D-coded |
| Electrical connection 2 | Angled socket, RJ45, 4-pin | DC operating voltage range | 0V 30V |
| Current rating at 40° C | 2A | Surge resistance | 0.8kV |
| Transmission characteristics | In accordance with category 5, EN 50173, class D According to category 5, ISO/IEC 11801, class D | Degree of protection | IP20 IP65 IP67 |
| Ambient temperature | -5°C 60°C | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Contamination level | 3 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | Housing material | Brass, nickel-plated PA Die-cast zinc |
| Housing colour | Black | Material of pin contacts | Brass Gold-plated |
| Manufacturer ID | 8040457 |
Specifications may be subject to change without notice
