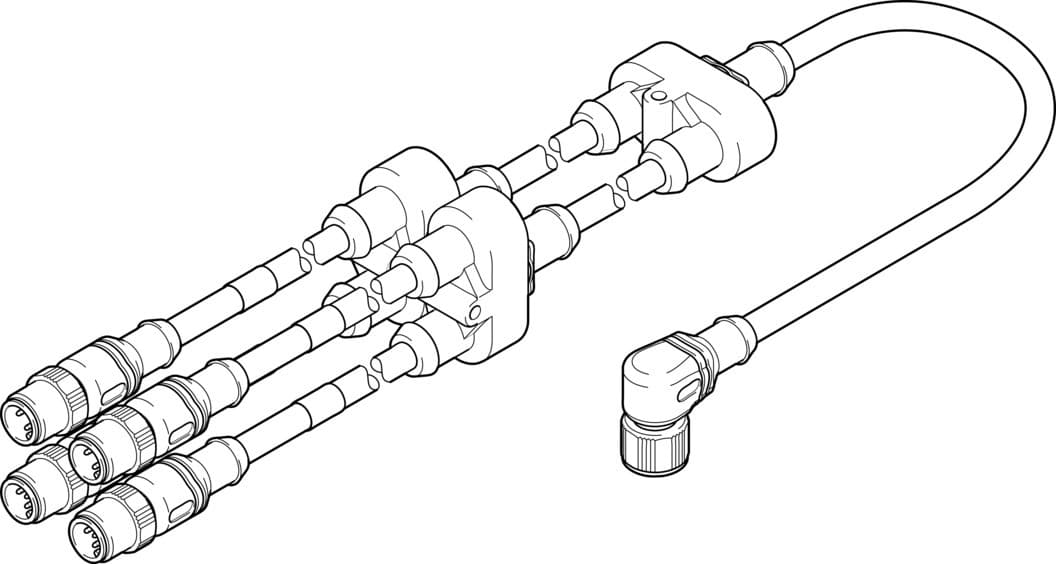

nefv-v12-m12w8-0.6-m12qg5
Product ID:8529
Updated: 2026/4/3
Key Features
- 1Ensure high-precision control for reliable industrial automation. 2、Feature robust construction suitable for demanding environments. 3、Offer a wide range of configurations to meet specific needs. 4、Provide efficient flow regulation to enhance process efficiency. 5、Back by Festo's commitment to quality and durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of mounting | With through-hole | Product weight | 157g |
| Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 1, number of pins/wires | 8 |
| Electrical connection 1, occupied pins/wires | 8 | Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00992265 | Electrical connection 2, function | Analog output module (green), digital input module (white), analog input module (yellow), digital output module (red) Control side |
| Electrical connection 2, design | Round | Electrical connection 2, connection type | 4x plugs |
| Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 2, type of mounting | Screw-type lock | DC operating voltage range | 0V 30V |
| Nominal operating voltage DC | 24V | DC load voltage operating voltage range | 0V 30V |
| Nominal operating voltage DC load voltage | 24 V | Current rating at 40° C | 2A |
| Surge resistance | 0.06kV | Cable length | 0.623m |
| Cable characteristic | Standard | Connector cable test conditions | Test conditions on request |
| Degree of protection | IP65 IP67 | Note on degree of protection | In mounted state |
| Ambient temperature | -25°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
| Housing material | TPE-U(PUR) | Housing colour | Black |
| Material of union nut | Die-cast zinc, nickel-plated | Material of pin contacts | Brass Nickel-plated |
| Insulating sheath material | PP | Manufacturer ID | 4787544 |
Specifications may be subject to change without notice
